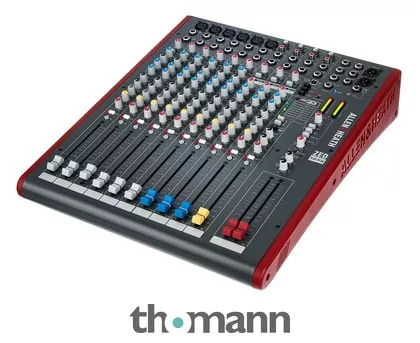

Mixer
- 6 Mic/Line inputs
- 3 Dual Stereo inputs
- DuoPre Pre-amplifier with 69 dB Gain Range
- 4 Aux Sends
- USB Send and Return
- Insert per channel
- High pass filter
- Mute per channel
- Built-in effect processor with 16 presets
- Tap Delay and editable parameters
- Stereo Return
- 2-Track Return
- 6.3 mm and 3.5 mm Headphone connection
- Stereo Record output
- alternative Stereo output
- Mono sum of LR output
- Master LR
- 12-Segment LR displays
- Master control for Aux 1 and 2
- Dimensions: 385 x 95 x 465 mm
- Weight: 7,4 kg
- Optional Rack mount kit: Article Nr. 199960
- Optional matching case: Article Nr. 249386
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2008
- Item number210473
- Sales Unit1 piece(s)
- Simultaneous channels 10
- Mic-In 6
- Mono Line-in 6
- Stereo-In 4
- Hi-Z Input 0
- Phantom Power 48 V
- Master Out XLR
- Aux Ways 4
- max. Pre Aux Channels 2
- PC Interface USB-B
- Audio Interface Input 2
- Audio Interface Output 2
- Multitrack-Recording No
- USB/SD Direct Record No
- Rec Out (Analog) Yes
- Low Cut Yes
- Inserts Yes
- Direct Out No
- Parametric Yes
- Compressor No
- Panorama Yes
- PFL Yes
- FX Processor 1
- USB Playback No
- Bluetooth Playback No
- Lamp connection No
- Footswitch Switch
- Matrixmixer No
- Bag No
- Zones 0
- 19″ Rackmount Optional
- Width385 mm
- Depth465 mm
- Height98 mm
- Weight6,5 kg
- Parallel usable Channels10
- Mic Ins6
- Mono Line Ins6
- Stereo Ins4
- Number of Pre Aux max.2
- InsertYes
- Effect Processor1
- USB PlayNo
- Bluetooth PlayNo
- Lamp ConnectorNo
- Foot SwitchSwitch
- Rackmount199960
