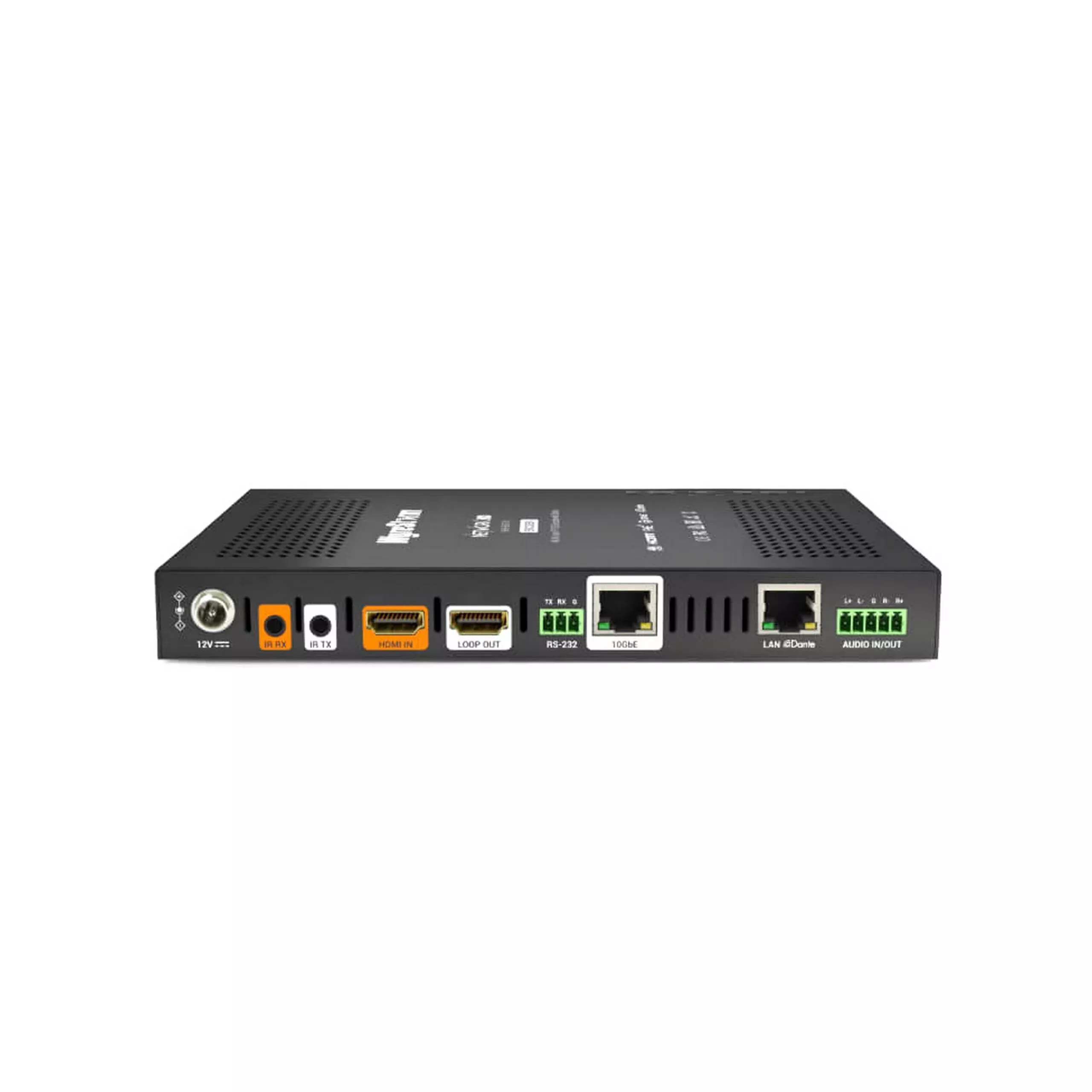

WyreStorm NHD-610-TX NetworkHD 610 Series 4K60 10GbE SDVoE Decoder

WyreStorm NHD-610-TX NetworkHD 610 Series 4K60 10GbE SDVoE Decoder

The NetworkHD 610 TX and RX expand the functionality of thepowerful SDVoE 600 series product line. The 610s retain many of thecapabilities found on the other models, such as full HDMI 2.0 encoding, zerolatency transmissions, video wall and multiview processing. However, the 610spack an extra punch by incorporating a Dante/AES67 output on the NHD-610-TX,allowing audio from the HDMI or analog audio input to transmit to Dante/AES67enabled amplifiers, DSP or mixers. Both the TX and RX are also equipped with afull speed USB 2.0 chipset maximizing compatibility with thousands of USBperipherals for extension over the network, such as a keyboard/mouse, webcams,touchscreens, or just simple data transfers.

With all the bells & whistles of a flagship AV over IPsolution, the NetworkHD 610 Series provides clarity and performance for thoseenvironments requiring detail and responsiveness. Whether monitoring missioncritical AV feeds from a control room, immersed in the competitive E-Sportsenvironment, or requiring crystal clear visuals in the medical field, this AVover IP distribution solution exceeds with no limitations.

Dante/AES67
The NHD-610-TX is equipped with a 2CH Dante audiotransmitter. Audio from either the HDMI or analog audio input can be sent overthe network using Dante protocols for a latency free and lossless delivery tocompatible audio equipment. We’ve also made sure AES67 is supported to expandcompatibility with even more audio receivers.

FULL USB 2.0
Both the TX and RX are equipped with USB host and devicesports. The highspeed chipset allows full USB 2.0 480Mbps data rates ensuringcompatibility with practically any peripheral you plug in. The USB data flowcan be customized allowing either the 610-TX or RX to act as a USB hostdepending on application requirements.

HDMI 2.0
All 600 series components support encoding full HDMI 2.0content. This includes 4K60 4:4:4 8bit and high dynamic range formats such asDolby Vision, HDR10 and HLG. Most HDMI content is transmitted completelyuncompressed and delivered over the network latency free using genlocksynchronization.

VIDEO WALL & MULTIVIEW
The NHD-610-RX integrates powerful video wall and multiviewprocessing via one device. Create captivating videos up to 8×8 in size with theability to adjust for bezels. Or create compelling picture in picture layoutsthat support up to 16 windows with full control over window placement and size.

Key Features

• Capable of high-bitrate multichannel audio passthrough,including Dolby Atmos and DTS:X
• Powerful video scaling can match a connected display to thevideo source, leaving the original source content unaltered
• Video resolution, framerate and color space conversion usingSMPTE/ITU recommended methods
• Genlock scaler mode for zero end-to-end latency
• Supports seamless AV source switching via Fast Switch mode
• Bidirectional IP to Infrared / RS-232 functionality via theAPI or 3rd-party drivers
• Powerful matrix functionality includes routing control ofall audio, video, RS-232 and IR signals
• Compatible with NHD-000-RACK4 for easy rack mounting
• Secure A/V transmissions using AES encryption methods

Technical Specifications

AUDIO & VIDEO
Inputs
1x HDMI 2.0
1x 5-pin Balanced Analog Audio
Outputs
1x HDMI 2.0 Loop Out
1x 5-pin Balanced Analog Audio Out
1x 10GbE 8-Pin RJ45
Maximum Pixel Clock
600MHz
Output Video Encoding
SDVoE Pixel Pipeline | Dante/
AES67 proprietary protocols
Encoding Data Rate
1080p@60Hz 8bit – 3.4Gbps
4K UHD@30Hz 4:4:4 8bit – 6.4Gbps
4K UHD@60Hz 4:4:4 8bit – 8.7Gbps (with light compression)
Max End to End Latency
Genlock Mode
Uncompressed = 30us, Compressed <120us
Fast Switch Mode
1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
Video Resolution (Max)
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @ 60Hz 12bit
Supported Standards
RGB | DCI | USB
COMMUNICATION & CONTROL
HDMI
HDMI 2.0b | HDCP 2.2 | CEC | EDID
LAN
1x 1GbE 8-pin RJ45 (Auxiliary Lan)
RS-232
1x 3-pin Phoenix Connector | 2 Way | Broadcast | Routed |API Programmable
IR
1x IR TX 3.5mm TS Mono Jack | API Programmable
1x IR RX 3.5mm TRS Stereo Jack | API Programmable
USB
3x USB 2.0 Type A
1x USB 2.0 Type B Host
USB Bandwidth
480Mbps
POWER
Power Supply
12V 2A DC PSU | 802.3at PoE+ Compliant
Power Consumption
Max
24w | Average: 10w
