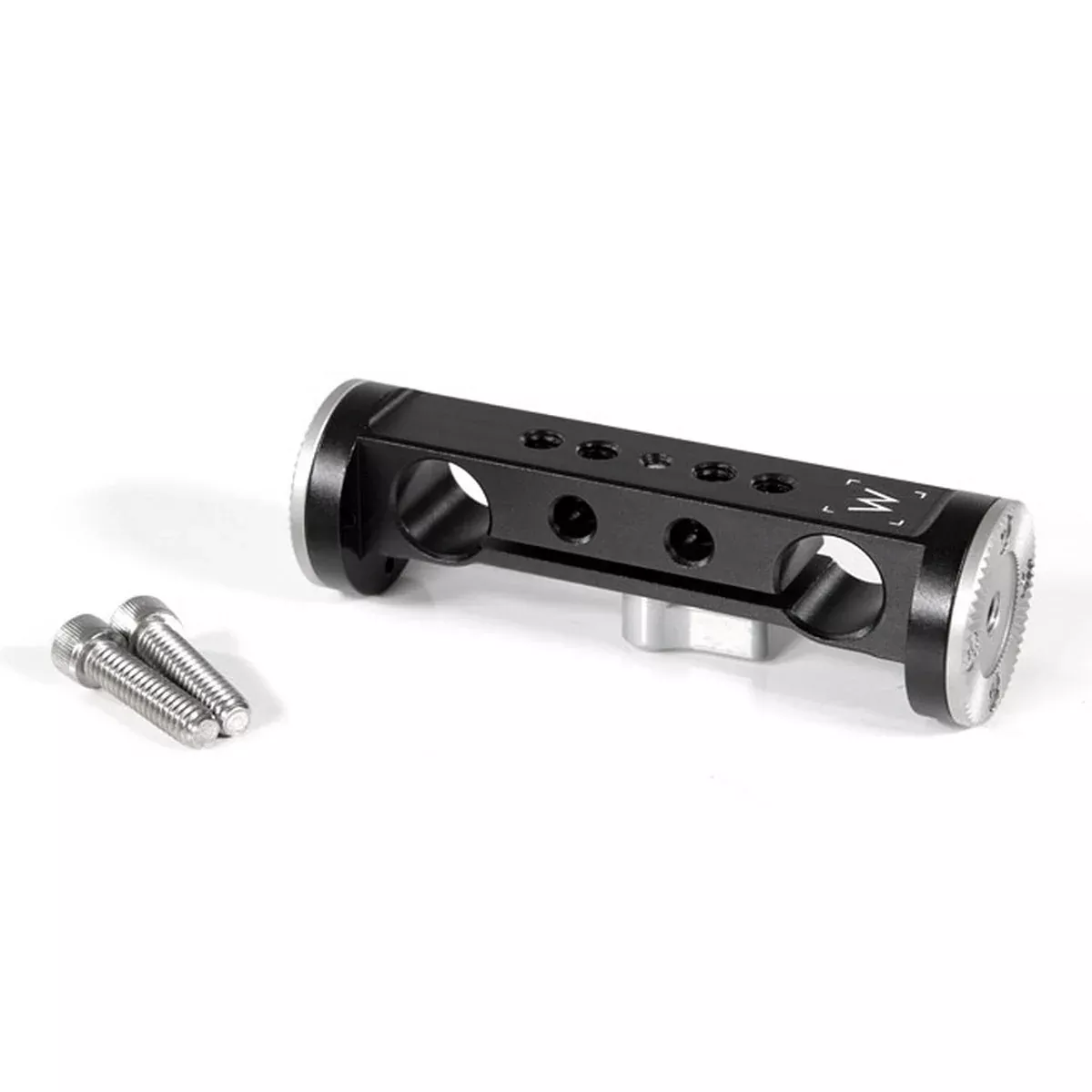

Wooden Camera Rosette Bracket Provides ARRI standard

Wooden Camera 163400 Rosette Bracket Provides ARRI standard

Rosette Bracket provides ARRI standard rosettes for attaching handles, extension arms, and 3rd party ARRI rosette accessories. Bracket can clamp directly to 15mm lightweight rods or can be attached to the front of Quick Base (BMC), Quick Cage (BMC)+LW, Quick Base (C100, C300, C500), Quick Base (FS700), Quick Base (F55, F5), Quick Base (Phantom Miro), Quick Base (Ikonoskop), Fixed Base (C100, C300, C500), and Fixed Base (F55, F5).

Key Features

• 1/4-20 holes for attaching accessories to top
• Pass-through holes to attach to baseplate systems
• Thumbscrew to clamp onto 15mm rods

Technical Specifications

Includes:
(2) 1/4-20 x 1 socket cap screws
Specifications:
Weight: 151g (0.3 lbs)
Dimensions: 104.8 x 32.3 x 32.3 mm (4.1 x 1.3 x 1.3 in)
