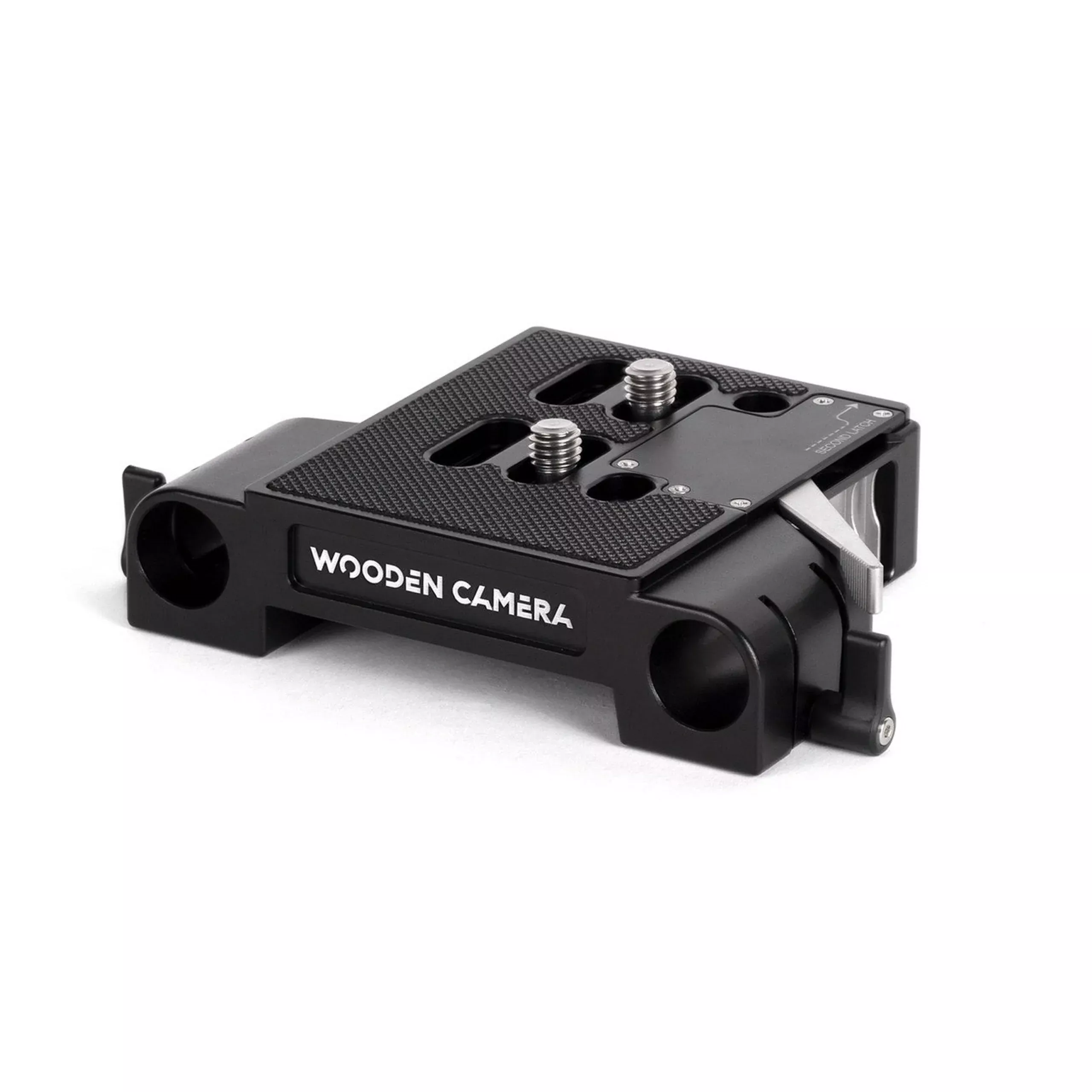

Wooden Camera 19mm Quick Release Bridgeplate

Wooden Camera 277000 19mm Quick Release Bridgeplate

QuickRelease Bridgeplate (19mm) is an ARRI standard bridgeplate with 19mm rodopenings. The new design allows the bridgeplate to drop down and lock on,anywhere along an ARRI standard dovetail.

A safetycatch adds security to the lever release function. Unlock the lever half way toslide on the dovetail or push the release button to allow the lever to movefurther and release the camera vertically.

ARRIstandard height makes it compatible with most camera rigs including those usingour Unified Baseplates. Rubberized top coating prevents twisting and slotteddesign accommodates non-standard screw spacings.

Whencombining this Bridgeplate with a RED DSMC2 or earlier RED systems, the lensheight will be approximately +3mm too tall. If you need to achieve the correctRED lens height spacing, please choose our Unified Bridgeplate (19mm). QR

Includes:
(2) 3/8-16screws

Specifications:
Weight: 420g(0.93 lbs)
Dimensions:101.6 x 152.4 x 31.75 mm (4 x 6 x 1.25 in)
