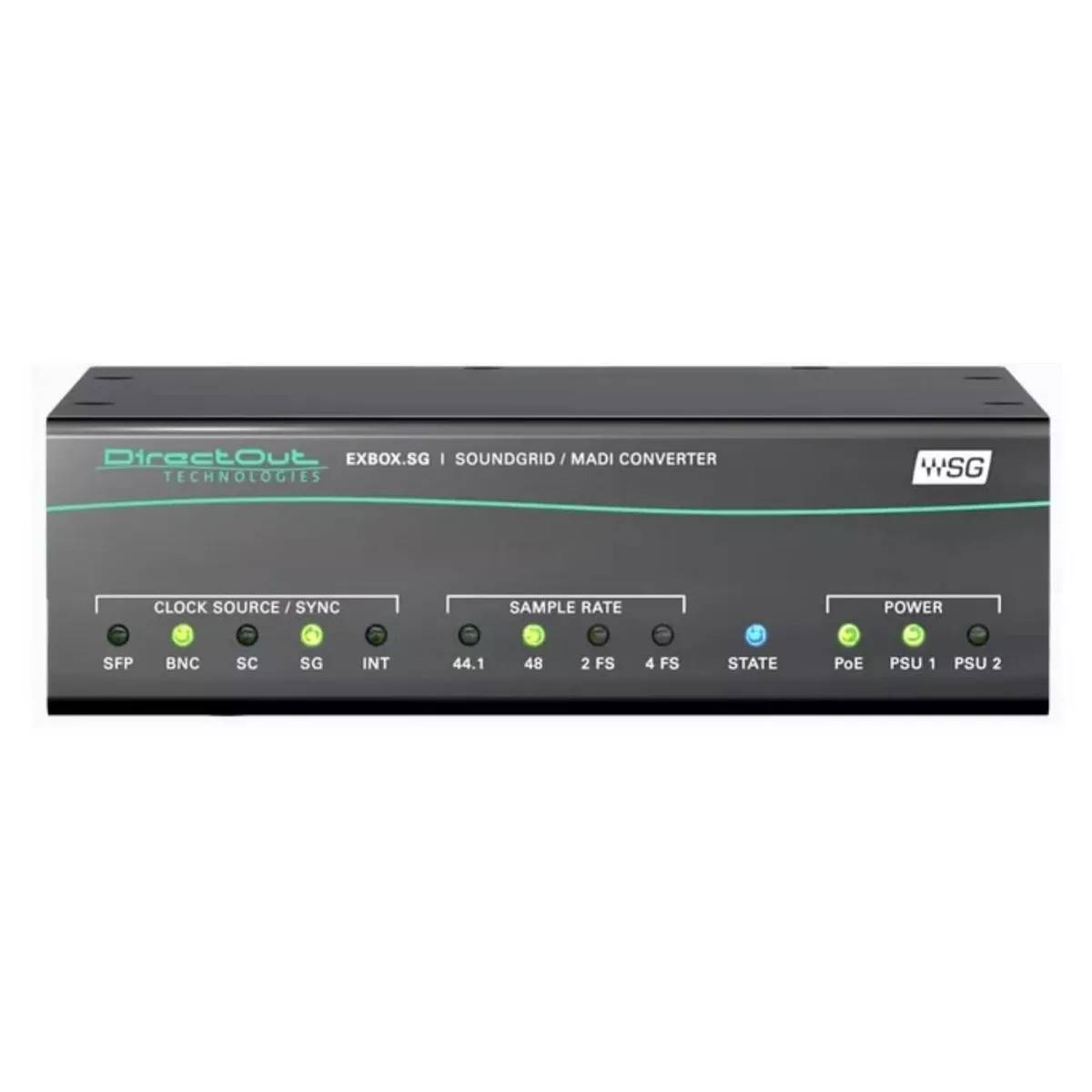

Waves EXBOX.SG EXBOX.SG for MADI systems

Waves EXBOX.SG EXBOX.SG for MADI systems.

Enjoy rock-solid digital audio transmission for all your high track count studio and live productions with the EXBOX.3G. Boasting three MADI ports and four network ports that facilitate the low-latency conversion of up to 128 audio channels between Waves SoundGrid audio processing and MADI systems (sold separately), its compact design occupies just 1/3 of a 19 rack. Add to that redundant power supplies, and you have the ideal tool for OB vans and live sound environments. With its versatile MADI ports covering Optical SC, Coaxial, and SFP interfaces, and the option to customize with suitable SFP modules, EXBOX.SG ensures compatibility with various applications. Additionally, its four network ports enable direct connection to redundant recording systems and plugin servers, eliminating the need for an extra switch. Equipped with LED indicators for easy monitoring of clocking, sample rate, device status, and power supply, and offering multiple power options including external power supplies and Power-over-Ethernet (PoE), EXBOX.SG guarantees safe and efficient operation in any setup.

Features:

• 3 MADI ports: Optical SC, Coaxial (BNC), SFP
• 128 audio channels at 48 kHz or 64 channels at 96 kHz
• 4 network ports; built-in switch
• 1/3 of 19; rack-mountable (3 devices fit side-by-side in 1 RU)

Waves EXBOX.SG Specifications:

• Dimensions
  • Width 140 mm
  • Height 42 mm
  • Depth 146 mm
  • Weight: 0.7 kg
• Power Consumption: 9 W (typical)
• Power Supply
  • 2 x Hirose socket (HR10)
  • 9 V – 24 V DC (external)
• Environmental Conditions
  • Operating temperature: +5C up to +45C
  • Relative humidity: 10% – 80%, non condensing
• MADI Ports
  • SC optical
  • SC socket FDDI (input / output)
  • ISO/IEC 9314-3
  • Wave length 1310 nm
  • Multi-Mode 62.5/125 or 50/125
• MADI Ports BNC coaxial
  • BNC socket (input / output)
  • Impedance: 75
  • 0.3 V up to 0.6 V (peak to peak)
• MADI Ports SFP
  • empty cage without module
  • Sample Rate (for MADI and Word Clock)
  • 30- 50kHz@ 1 FS
  • 60-100kHz@ 2 FS
• MADI Format (I/O)
  • 48k Frame, 96k Frame
  • 56 channel, 57 channel, 64 channel
• Network
  • 4 x RJ45 socket
    • Gigabit Ethernet for transmission of network audio, control data, and firmware updates
  • Network-Layer 2
    • 128 channels I/O @ 1 FS (64 channels @ 2FS)
  • Standard: Soundgrid
  • PoE (Network Port 1)
  • PoE Class 0 / 0.4 – 13 W
  • IEEE 802.3af
