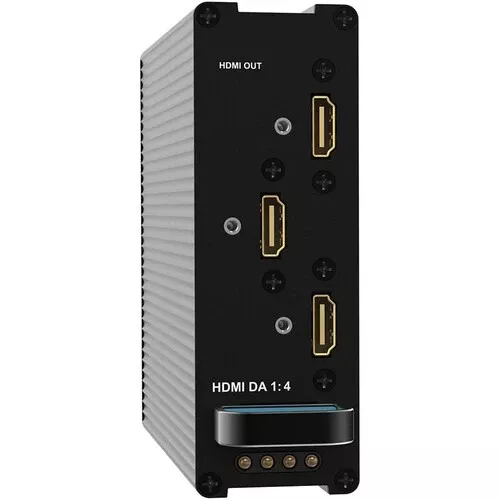

Theatrixx Technologies HDMI istribution Amplifier 1:4 4K Module

The HDMI Distribution Amplifier 1:4 Reversible Module fits in the 8-BayReversible Rackmount Converter system.The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed. Read more

Features

• Video Input: 1 x HDMI 2.0 type A with locking system
• Video Output: 4 x HDMI 2.0 type A with locking system
  (Individual downscaling per port)
• Video Format Support: HDR 4K/2K @ 60 fps (4:2:0 10 bits)
  4K/2K @ 60 fps (4:4:4 8 bits)
• HDCP Compliance: HDCP 2.2/1.4
• Video Bandwidth: Single-link 600 MHz (18 Gbps)
• Embedded Audio: DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM
