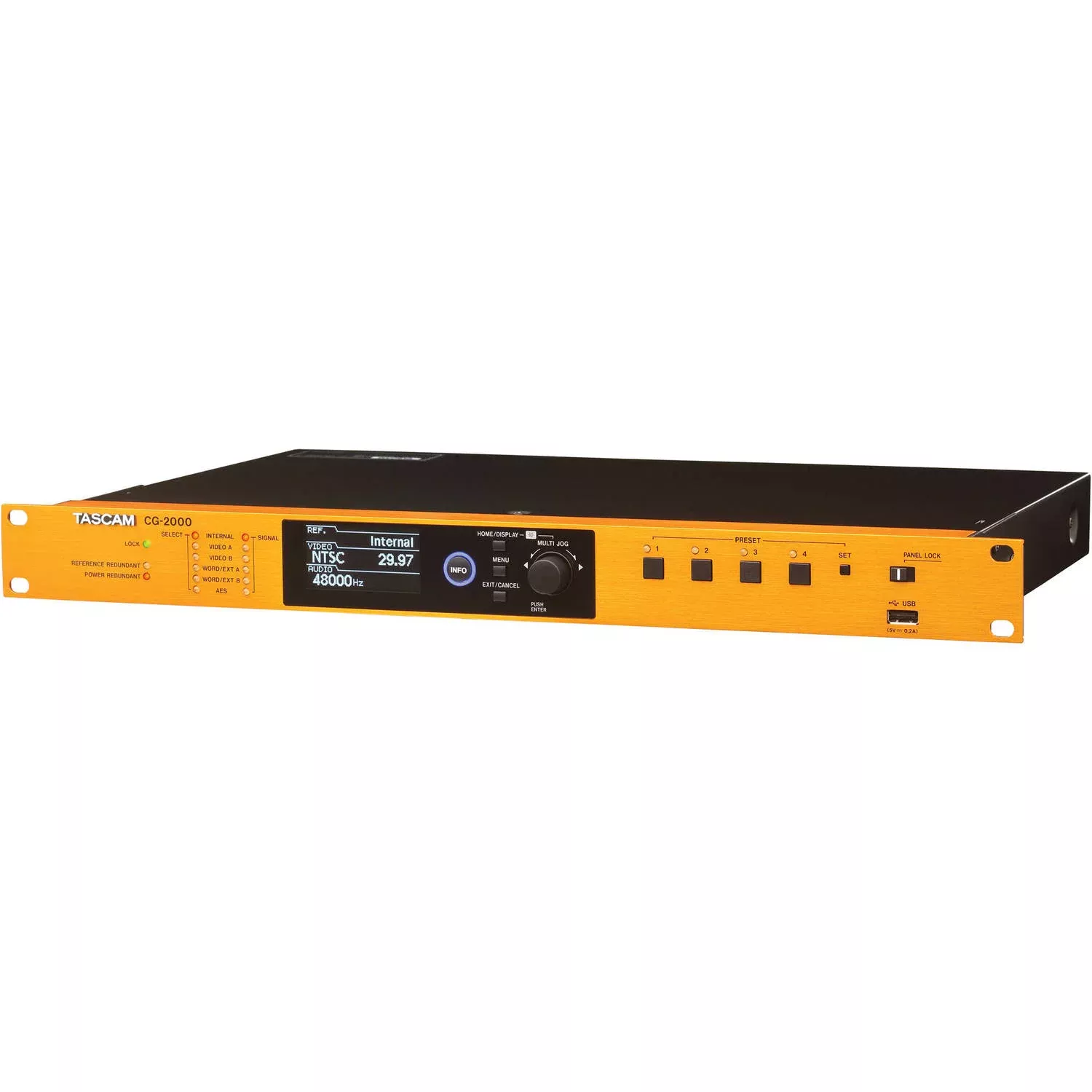

TASCAM CG-2000 – Video Sync/Master Clock Generator

The CG-2000 from TASCAM is specifically designed for the needs of broadcasting and post production. An OCXO (oven-controlled crystal oscillator) is used for its high precision and because it’s not affected by the temperature of the environment. With a clock frequency precision of 0.01 ppm the unit delivers high-precision synchronization with a frequency stability of +/-0.005 ppm or less per day.The unit is equipped with an external input connector that supports a 10MHz signal that allows it to be connected to a rubidium clock or GPS clock for even higher precision. External clock jitter is reduced using an original circuit design that incorporates a high-performance video clock generator engineered with a FPGA and a PLL (phase-locked loop) circuit with a discrete filter. This enables a stable clock signal to be provided to the video/word outputs, improving system stability. Read more

Features

• For Broadcasting and Post Production
• Highly Accurate OCXO Crystal
• NTSC, PAL, HD Tri-Level I/O
• 12 Wordclock Outs
• AES and S/PDIF I/O
• Pull-Up/Down for Film, NTSC, PAL
• Glitch-free Relocking Circuit
