Studio Technologies Model 370A 2-Channel Intercom Beltpack

Studio Technologies Model 370A 2-Channel Intercom Beltpack

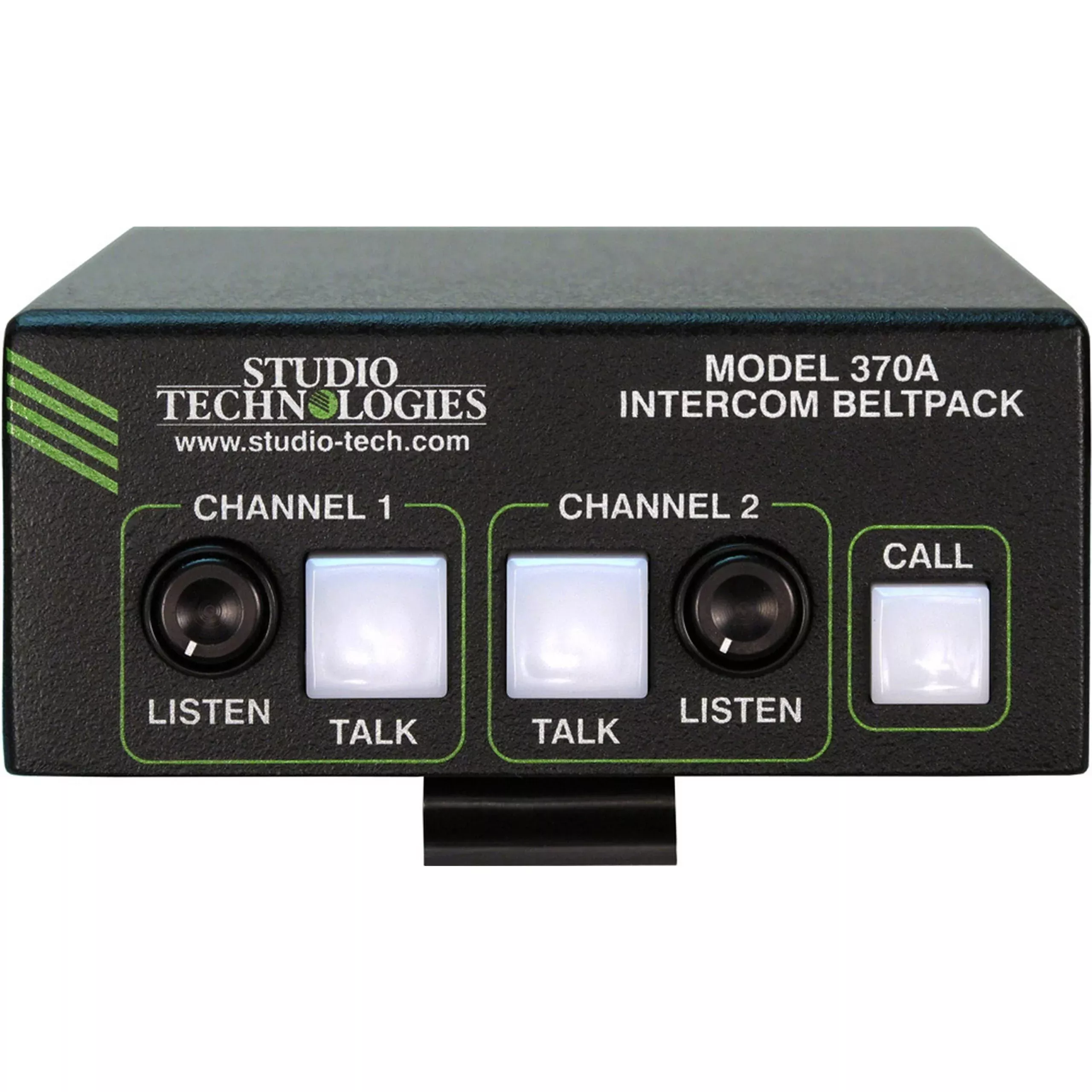

The Studio Technologies Model 370A Intercom Beltpack beginswith the features offered by traditional 2-channel party-line intercom userdevices and adds a range of new capabilities, along with the advancedperformance and flexibility that Dante audio-over-Ethernet provides. Over astandard IP network, multiple Model 370A units can be used in party-line (PL)intercom applications with help from an external Dante-enabled audio matrixsuch as the Studio Technologies Model 5422 Dante Intercom Audio Engine.Alternately, units can be used “point-to-point” or interfaced withDante-compatible matrix intercom systems.

Key Features

• Dante audio-over-Ethernet technology
• Two independent talk and listen channels
• Integrated call function
• Supports dynamic and electret microphones
• 5-pin female XLR headset connector
• Excellent audio quality
• Uses STcontroller for configuration
• AES67 and Dante Domain Manager support
• Power-over-Ethernet (PoE) powered

Technical Specifications

Power Source
Power-over-Ethernet (PoE): class 1 (very low power, =3.84watts) per IEEE 802.3af
Network Audio Technology
Type
Dante audio-over-Ethernet
AES67-2013 Support
yes
Dante Domain Manager (DDM) Support
yes
Bit Depth
up to 24
Sample Rate
48 kHz
Number of Transmitter (Output) Channels
2
Number of Receiver (Input) Channels
2
Dante Audio Flows
4; 2 transmitter, 2 receiver
Network Interface
Type
100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE)supported
Data Rate
100 Mb/s (10 Mb/s and 1000 Mb/s “GigE” Ethernet notsupported)
Audio Channels 2 talk, 2 listen
Microphone Input
Compatibility
dynamic or electret (low-voltage DC-powered) microphones
Type
unbalanced
Electret Microphone Power
5 volts DC via 2.21 k resistor, selectable on/off
Gain
22, 30, 42, or 48 dB, selectable, ref. -60 dBu input toDante output (-20 dBFS nominal)
Frequency Response
50 Hz to 10 kHz, -3 dB
Distortion (THD+N)
<0.02%
Dynamic Range
75 dB
Compressor
Threshold
1 dB above nominal level (-19 dBFS)
Slope
2:1
Status LED
compressor active
Headphone Output
Type
2-channel
Compatibility
intended for connection to stereo (dual-channel) or monaural(single-channel) headsets with nominal impedance of 50 ohms or greater
Maximum Output Voltage
3.8 Vrms, 1 kHz, 150-ohm load
Frequency Response
20 Hz to 10 kHz, -3 dB
Distortion (THD+N)
<0.002%
Dynamic Range
>100 dB
Call Function
Signaling Method
20 kHz, ±800 Hz, within audio channels
Call Send Level
-20 dBFS
Call Receive Level
-27 dBFS minimum
Connectors
Headset
5-pin female XLR
Ethernet
Neutrik NE8FBH etherCON RJ45 receptacle
USB
type A receptacle (located inside Model 370A’s enclosure andused only for application firmware updates)
Configuration Requires Studio Technologies STcontrollersoftware application, version 1.06.00 and later (STcontroller is compatiblewith Windows version 7 and later)
General
Operating Temperature
32° to 122°F (0° to 50°C)
Storage Temperature
-40° to 158°F (-40° to 70°C)
Humidity
0 to 95%, non-condensing
Altitude
not characterized
Dimensions (WxHxD)
3.6 x 1.6 x 4.8” (9.2 x 4.0 x 12.6cm)
Mounting
intended for portable applications; contains integral beltclip; optional MBK-01 Mounting Bracket Kit allows Model 370A to be permanentlymounted
Weight
0.6Lbs (0.3kg)
