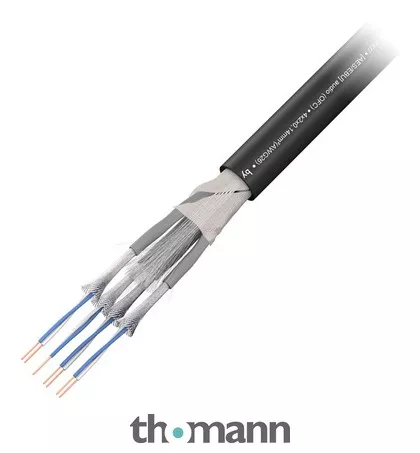

Very High Quality 4-Pair Multicore CableFor live and studio purposes as well as permanent installations
Technical Data:
- Completely torsion-free
- Cold-resistant up to -30°
- Pairs of wires insulated individually with rubber sheath
- Cu coil shielded with 99% coverage
- Low capacitance of 45 pF cable/cable
- 110 Ohm (AES/EBU), compliant over hundreds of metres
- Cable cross-section: 0.14 mm²
- Sheath: S-PVC
- AWG – AWG24
- Conductor insulation: Skin PE
- Shielding: Cu coil, paired
- Coverage: 99%; Temperature range: -30° to 70°
- Sheath colour: Black, matte
Electrical Data:
- Capacitance cable/cable at 1 m: 45 pF
- Capacitance cable/shield at 1 m: 90 pF
- Conductor resistance at 1 km: <90 Ohm
- Insulation resistance at 1 km:> 1 GOhm
- Characteristic impedance: 110 Ohm
- Outer diameter: 10.2 mm
- Available sinceDecember 2006
- Item number108598
- Sales Unit1 metre(s)
- Number of NF-channels 4
- Screened Pair Yes
- Colour Black
