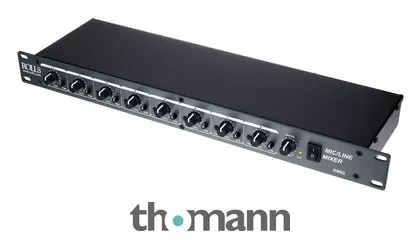

Mixer
- 8 XLR microphone inputs
- Input level with trim controls
- Equaliser (treble and bass reduction)
- Each channel features individually switchable +48 V phantom power
- 8 Jack inputs (internally switchable as inserts or direct outputs)
- RCA prefade output (pre-master volume), for recording, monitoring or cascading
- RCA AUX bus input for cascading, also can be used as a ninth unbalanced input
- Microphone- or line level output
- Robust design and steel-sheet rack housing with 1 U
- Dimensions: 48 (19″) x 4.5 (1 U) x 15 cm
- Weight: 3 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2009
- Item number210693
- Sales Unit1 piece(s)
- Parallel usable Channels 8
- Mic Ins 8
- Stereo Ins 0
- Master Out XLR
- Number of Pre Aux max. 1
- PC Interface No
- Multitrack Recording No
- USB/SD Direct Record No
- PFL No
- Effect Processor 0
- USB Play No
- Bluetooth Play No
- Foot Switch No
- Matrix Mixer No
- Zones 0
- 19″ Rackmount Yes
- Height45 mm
- Width483 mm
- Depth150 mm
- Weight3 kg
- simultaneously used channels8
- Mic-In8
- Mono Line-in8
- Mono Line Ins8
- Stereo-In0
- Hi-Z Input0
- Phantom Power48 V
- Aux Ways1
- Pre Aux max.1
- PC-InterfaceNo
- Audio Interface Input0
- Audio Interface Output0
- InsertYes
- Direct OutYes
- Racklight ConnectorNo
- Lamp ConnectorNo
- Foot switchNo
- RackmountYes
- Case ThomannNo
- Case ThonNo
- BagNo
- HE Units1 U
