RDL D-BT1A Wall Mounted Bluetooth Audio Format-A Interface

RDL D-BT1A Wall Mounted Bluetooth Audio Format-A Interface

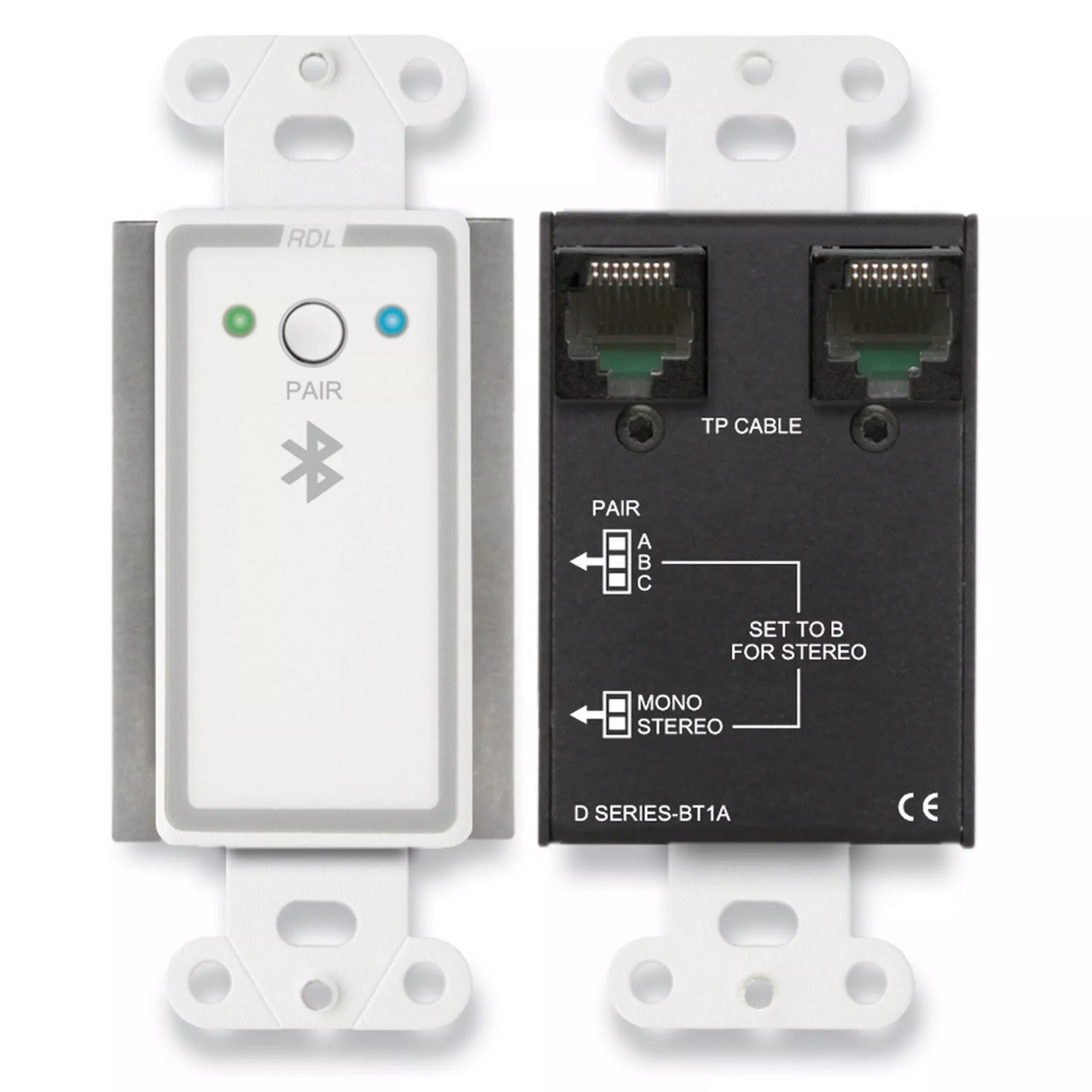

The RDL D SERIES-BT1A modules (D-BT1A) are Bluetooth audioreceiving modules compatible with RDL Format-A twisted pair receivers. Whenpaired with a compatible Bluetooth enabled device, the module receives stereoaudio from the Bluetooth source. The stereo signal is sent through two Format-Apairs to any RDL Format-A receiver. A stereo/mono switch set by the installerpermits summed mono audio to be sent over one switch-selected pair to theFormat-A receiver.

If set for stereo operation, an additional Format-A source(set to Pair A) may be daisy chained with the D SERIES-BT1A to a three-pairFormat-A receiver. If set for mono operation, up to three D SERIES-BT1A modulesmay be daisy chained to a single three-pair Format-A receiver. Connectionsbetween Format-A modules and Format-A receivers use standard CATx cable withRJ45 connectors.

The D SERIES-BT1A modules are powered from the Format-Areceiver. The installer can customize the module name and programming passwordthrough the Bluetooth connection using a smartphone, computer or tabletterminal program. These modules feature studio-quality circuits and analogfilters to provide audio performance exceeding expectations from consumerinterface technologies. High performance, simplicity of operation andefficiency of installation make RDL the best value in professional Bluetoothinterfaces.

The Bluetooth word mark and logos are registered trademarksowned by Bluetooth SIG, Inc. and any use of such marks by Radio Design Labs,Inc. is under license. Other trademarks and trade names are those of theirrespective owners.

Key Features

• Bluetooth Audio Input for Installed Sound System
• Intuitive Single Button Pairing with LED Status Indication
• Special Software Not Required for Module Setup
• Customize the Module ID Name and Programming Passwordthrough the Bluetooth Connection
• Sends Received Bluetooth Audio to RDL Format-A Receivers
• Mono Summed or Stereo Audio Input Mode is Switch-Selectableon Rear Panel
• Rear-Panel Switch Selects which RJ45 Pair (A, B or C) is Fedin Mono Summed Mode
• Daisy-Chain up to Three D SERIES-BT1A modules to OneFormat-A Receiver in Mono Mode
• Remotely Powered through Twisted Pair Cable
• Signal and Power Pair Pass-Through on RJ45 Jacks

Technical Specifications

Output
RDL Format-A (RJ45)
Format-A Input
RJ45 LOOP IN
Format-A Signal Pair Used
A, B, or C (summed mono mode, rear-panel switch-selectable);B and C (stereo mode, pair A pass through)
Frequency Response
20 Hz to 20 kHz (± 0.5 dB)
THD+N
<0.1%
Noise below -20 dBFS
<-70 dB
Crosstalk (channel to channel)
<70 dB
Audio Operating Levels
-20 dBFS = +4 dBu (balanced), nominal
Ambient Operating Environment
32 Degrees to 104 Degrees F (0 Degrees to 40 Degrees C)
Power Requirement
24 Vdc @ 100 mA (through RJ45)
Dimensions (WxHxD)
1.73 x 4.11 x 1.62” (4.39 x 10.44 x 4.11 cm)
Package Type
Cardboard Box
Package Dimensions
3.625 x 4.625 x 2.125”
Shipping Weight
0.45Lbs
WEEE weight
0.29Lbs
Tariff code
8518.50.0000
