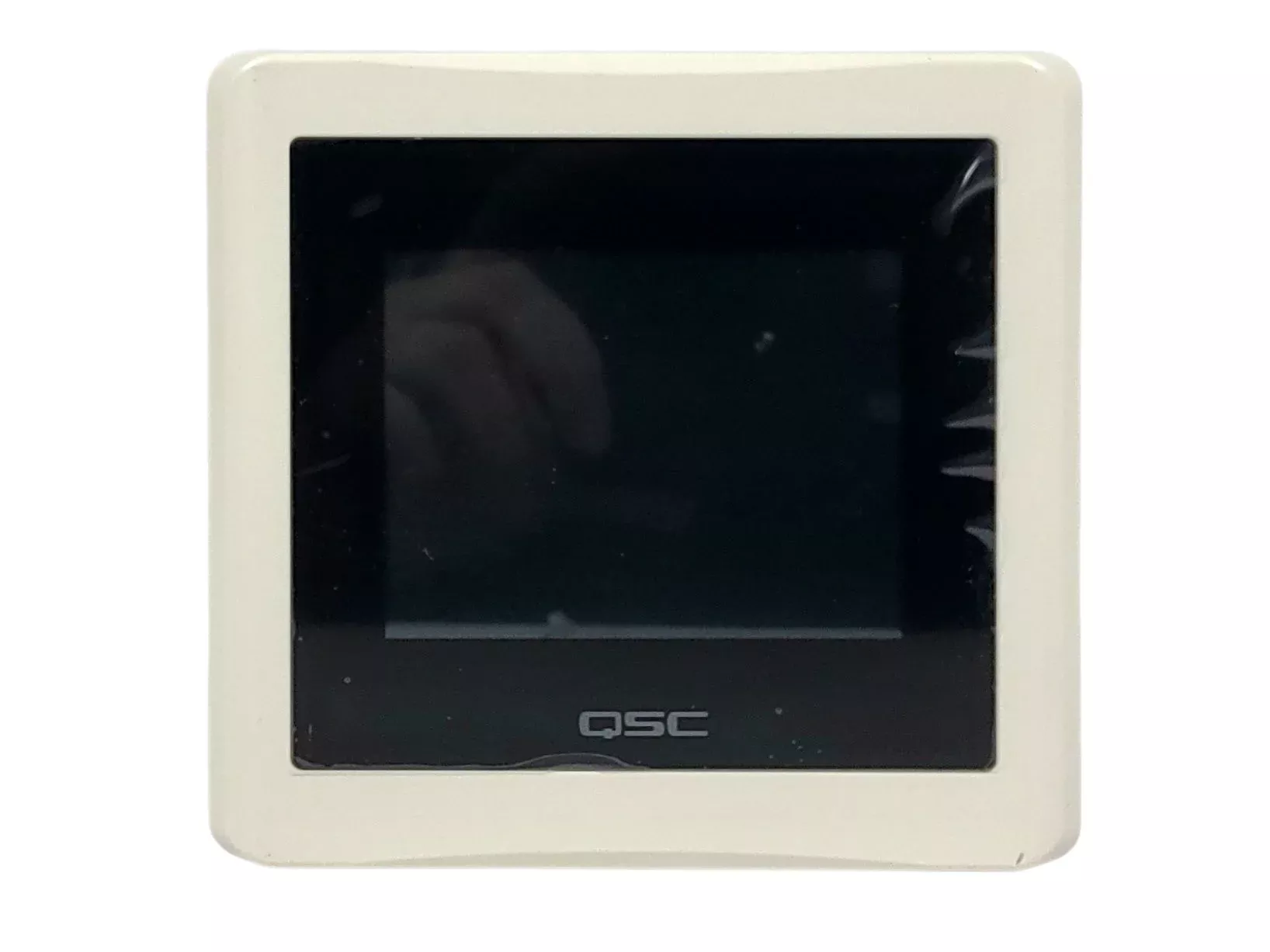

The QSC TSC-3 WHT-R is a professional 3.5-inch networked touch screen controller engineered to provide state-of-the-art, customizable control within a Q-SYS audio and AV system. Combining capacitive touch technology with a 320 x 240 full-color LCD display, this wall-mounted controller offers an ideal user interface for managing sophisticated systems where control needs range from simple parameter adjustments to the recall of global snapshots. Beyond audio control, the TSC-3 can manage a wide variety of equipment by utilizing the Q-SYS Core’s GPIO and TCP/IP instruction mechanisms, delivering true one-touch control of complete systems directly from the wall.Designed for simplified installation, the TSC-3 fits into a standard U.S. 2-gang wall box and is powered via Power over Ethernet (PoE), requiring only a single network cable for both data and power. It hosts custom user-designed control interfaces created in Q-SYS Designer Software, with the ability to adjust nearly every system parameter and even display custom bitmap graphic images for a branded, intuitive user experience. The capacitive touch interface eliminates physical controls for increased reliability, and the controller connects to the network via a standard RJ-45 10/100 Mbps port. This open-box unit, finished in white, offers an excellent opportunity to acquire professional-grade Q-SYS system control at a reduced cost. Please note this product has been discontinued. Read more
Features
- 3.5-inch Capacitive Touch Display provides a 320 x 240 full-color LCD with 240 nit luminance for clear, responsive user control.
- Power over Ethernet (PoE) simplifies installation with IEEE 802.3af compliance, requiring only a single network cable.
- Customizable Q-SYS Control Interface hosts user-designed screens from Q-SYS Designer Software for managing nearly any system parameter.
- Standard 2-Gang Wall Box Mounting fits into US electrical boxes for clean, professional integration into any room.
- RJ-45 10/100 Mbps Connectivity ensures reliable network communication with the Q-SYS Core via a standard Ethernet port.
- Discontinued Model – White Finish offers an open-box opportunity to acquire this legacy control surface at a reduced price.
