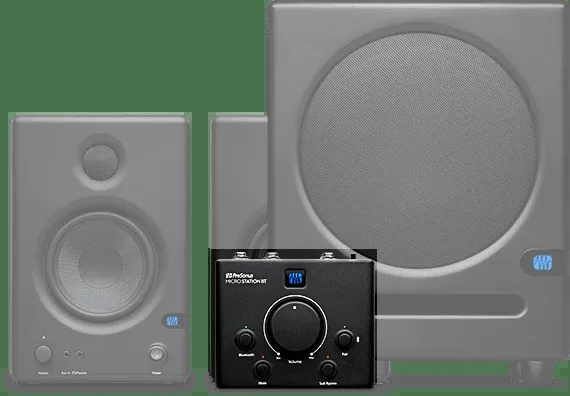

PreSonus MicroStation BT

MicroStation BT

The little magic box.

MicroStation BT is the ultimate solution for anyone who wants to add Bluetooth connectivity to their favorite pair of studio or media reference monitors. Compact, convenient, and stylish, MicroStation BT also makes it easy to add a subwoofer to create a 2.1 listening environment while putting the overall system level control right under your fingertips.

Features

Inputs and Outputs

• Stereo Bluetooth input lets you add wireless connectivity to any speaker
• Stereo pair of balanced ¼-inch TRS and stereo ?-inch TRS inputs make it easy to connect both pro and consumer audio gearinputs
• Full-range Left/Right Balanced ¼-inch TRS to connect professional studio and media reference monitors
• Stereo ?-inch TRS headphone/aux output lets you connect your favorite headphones or output to a consumer device for streaming, recording, and more
• Balanced ¼-inch TRS and unbalanced RCA Subwoofer output to connect your favorite powered subwoofer

Controls

• Large ergonomic Volume knob controls overall full-range and subwoofer level
• Bluetooth on/off button lets you toggle between Bluetooth and analog sources and an easy-to-use pairing button lets you quickly pair your favorite Bluetooth-enabled device
• Sub Bypass button lets you mute your subwoofer without silencing your full-range speakers
• Mute button with LED lets you silence your speakers or headphones

Technical Specifications
Audio Inputs
Main L/R Inputs
Type ¼” Balanced TRS Active
Dynamic Range 108 dB
Frequency Response 20 Hz to 20 kHz
THD+N 0.001%
S/N Ratio> 102 dB
Bluetooth Input
Type Bluetooth 5.1
Frequency Response 20 Hz to 20 kHz
Auxiliary Input
Type 1/8″ Unbalanced TRS
Frequency Response 20 Hz to 20 kHz
THD+N <0.01%
Dynamic Range 108 dB
Audio Outputs
Main Output
Type ¼” TRS Active Balanced
Frequency Response 20 Hz to 20 kHz
THD+N <0.02%
S/N Ratio>98 dB
Headphone Output
Type 1/8″ Unbalanced TRS, Stereo
Maximum Level 32.5 mW / Channel
Frequency Response 20 Hz to 20 kHz
THD+N <0.50%
Aux Output
Cue Level Range 1/8″ Unbalanced TRS, Stereo
Frequency Response 20 Hz to 20 kHz
THD+N 0.001%
Subwoofer Outputs
Type
1 ¼” Balance TRS Active

1 Unbalanced RCA

Frequency Response 20 Hz to 200 Hz
THD+N 0.002%
S/N Ratio>102 dB
Power
Power Supply Type USB-C™- compatible
Physical
Dimensions
Height 2.2” (56 mm)
Depth 3.9” (100 mm)
Width 4.9” (125 mm)
Weight 1 lb. (0.45 kg)
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
