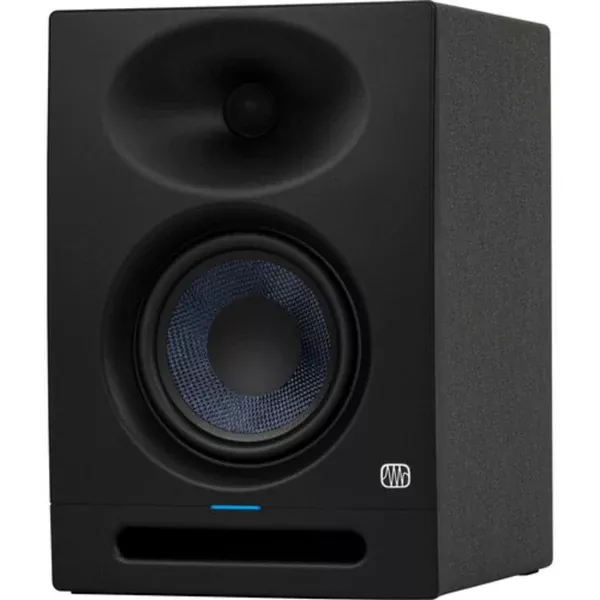

Audio engineers, producers, and musicians looking for a professional studio monitor with a wide stereo image will be impressed with the single PreSonus Eris Studio 5, an active 2-way studio monitor which provides an expanded and highly accurate frequency response and a wide stereo field, thanks to the custom-designed EBM (Elliptical Boundary Modeled) waveguide, which provides a broad sweet spot. This compact studio monitor is well suited in both home studios and professional mix rooms.
Two Class-AB amplifiers deliver 45W to the 5.25″ woven composite woofer and 35W to the 1″ silk dome tweeter, which offers a snappy, accurate transient response. The monitor offers a frequency response from 20 kHz down to 48 Hz for a full-range sound with plenty of volume (102 dB SPL). The rear panel provides acoustic tuning controls including a three-position Acoustic Space switch that helps compensate for the boundary bass boost that can occur when a monitor is placed in a corner or near a wall. High and Mid controls help to further mitigate room anomalies, while a low cutoff filter makes it easy to integrate a subwoofer into your monitor setup.
Key Features at a Glance
- 5.25″ woven composite low-frequency driver
- 1″ ultralow mass, silk-dome, high-frequency driver
- Crossover Frequency, 3.5 kHz
- 100 x 60° EBM waveguide provides a sweet spot
- Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
- 80W, Class AB dual amplification
- 48 Hz to 20 kHz frequency response
- 102 dB Peak SPL (at 1 m)
- Acoustic Tuning Controls:
- Acoustic Space (Flat, -2 dB, -4 dB)
- High Frequency (±6 dB, center 10 kHz, continuously variable)
- Mid Frequency (±6 dB, center 1 kHz, continuously variable)
- Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
- Inputs: XLR and 1/4-inch TRS balanced rear-panel inputs ; RCA unbalanced rear-panel inputs
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- Power Saver mode (engages after 40 minutes)
Box Contains
- Presonus ERIS STUDIO 5
- 1 x Power Cord
