Premier Mounts PDS-PLUS Low-Profile Universal Projector Mount

Premier Mounts PDS-PLUS Low-Profile Universal Projector Mount

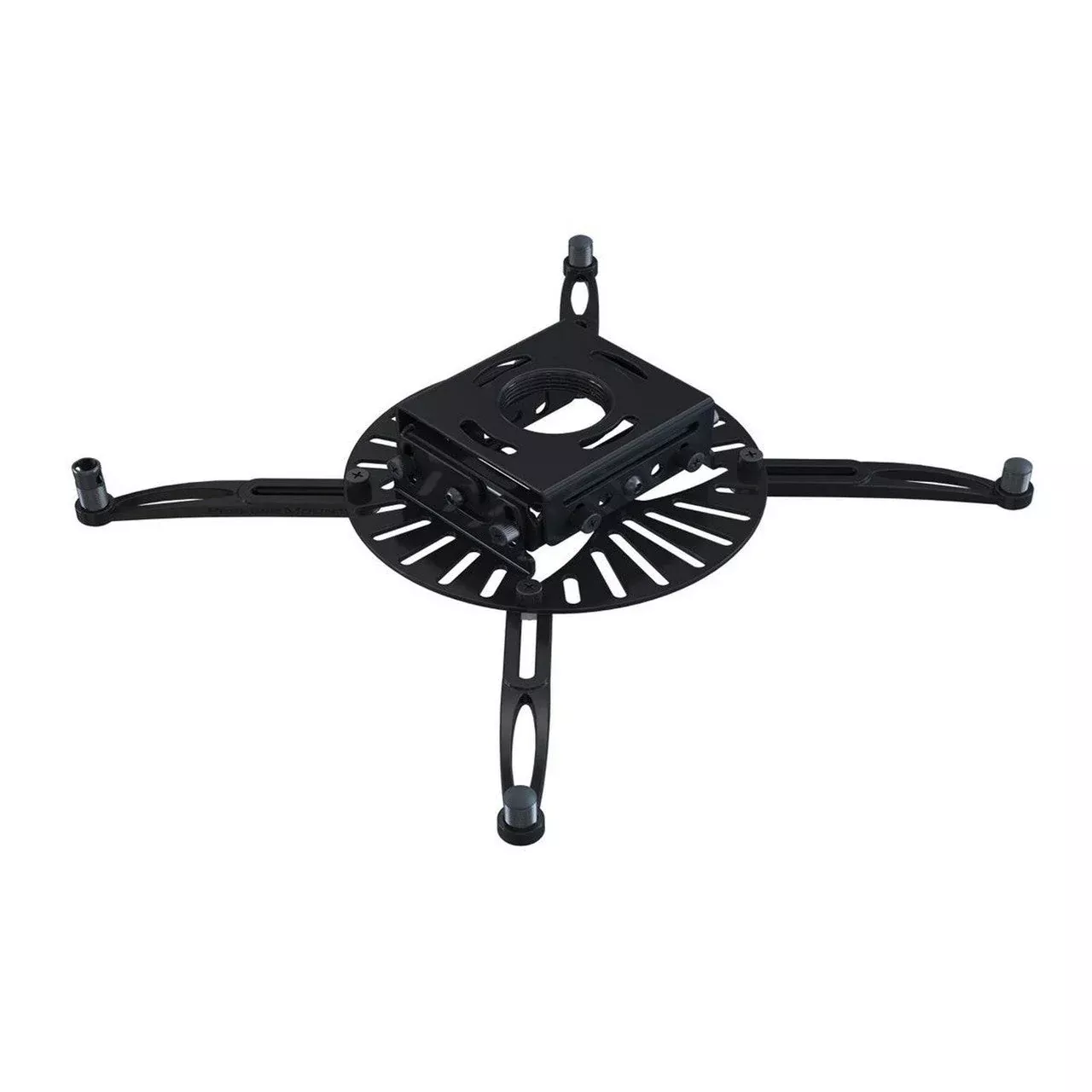

The PDS-PLUSis a low-profile universal projector mount that can be mounted directly to theceiling or in use with a drop pipe. This mount truly is universal because itfeatures a slotted mounting base with six interchangeable legs (four long andtwo short) to reach both shorter and wider mounting points. Most standard sizedprojectors will work well with the PDS-PLUS.

Key Features

• The PDS-PLUSis a low-profile universal projector mount that can be mounted directly to theceiling or in use with a drop pipe
• This mounttruly is universal because it features a slotted mounting base with sixinterchangeable legs (four long and two short) to reach both shorter and widermounting points
• Installationof the PDS-PLUS is easy because it mates to standard 1.5 in. NPT pipe, ordirectly to structural surfaces
• 75 lb. |34.02 kg Weight Capacity
• Being one ofthe most popular mounts for education applications, the PDS-PLUS is OSHPDapproved, UL listed and includes Lock-It security hardware

TechnicalSpecifications

Shipping Weight
4.9 lb. |2.22 kg
Weight Capacity per Mount
75 lb. |34.02 kg
Width
16.43 in. |417.32 mm
Height
2.8 in. |71.12 mm
Mounting Pattern Type
None
Pitch
+16.50/-16.50
Roll
+7.50/-7.50
Yaw
+42.00/-42.00
Shipping Box DIM Sizes
11.8 in.(wide) x 6.5 in. (high) x 11.8 in. (deep) | 299.72 mm x 165.1 mm x 299.72 mm
Diameter
16.43 in. |417.32 mm
UPC
829973260767
