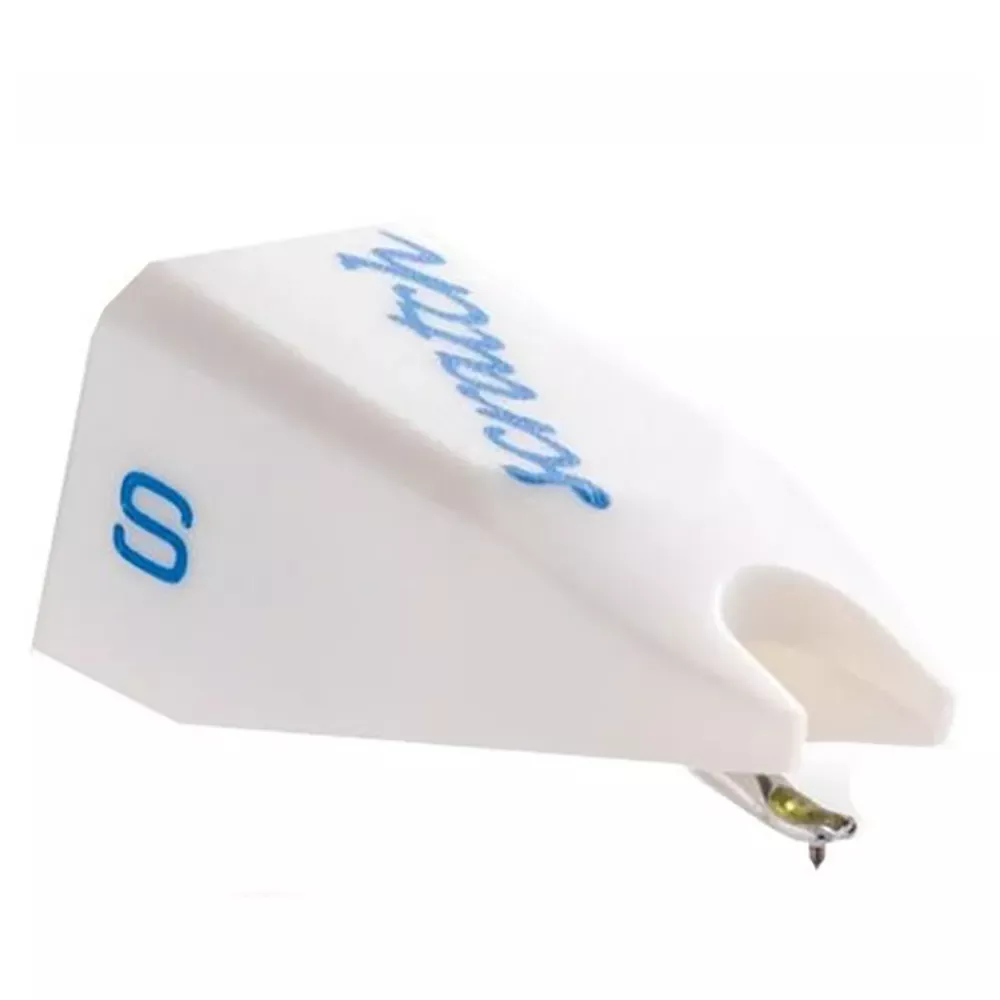

Ortofon Scratch Replacement Spherical Stylus, White

Ortofon Scratch Replacement Spherical Stylus, White

• Output voltage at: 1000Hz, 5cm/sec. – 7 mV
• Channel balance at: 1kHz – 1,5 dB
• Channel separation at: 1kHz – 25 dB
• Channel separation at: 15 kHz – 15 dB
• Frequency range at : 3dB – 20-20.000 Hz
• Frequency response: 20-15.000 Hz 3dB/-2dB
• Tracking ability at 315 Hz at recommmende tracking force: 80 μm
• Compliance, dynamic lateral: 6 μm/m N
• Stylus type: Spherical
• Stylus tip radius: R 18 μm
• Tracking force range: 3,0-5,0 g (30-50 mN)
• Tracking force recommended: 4,0 g (40 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
