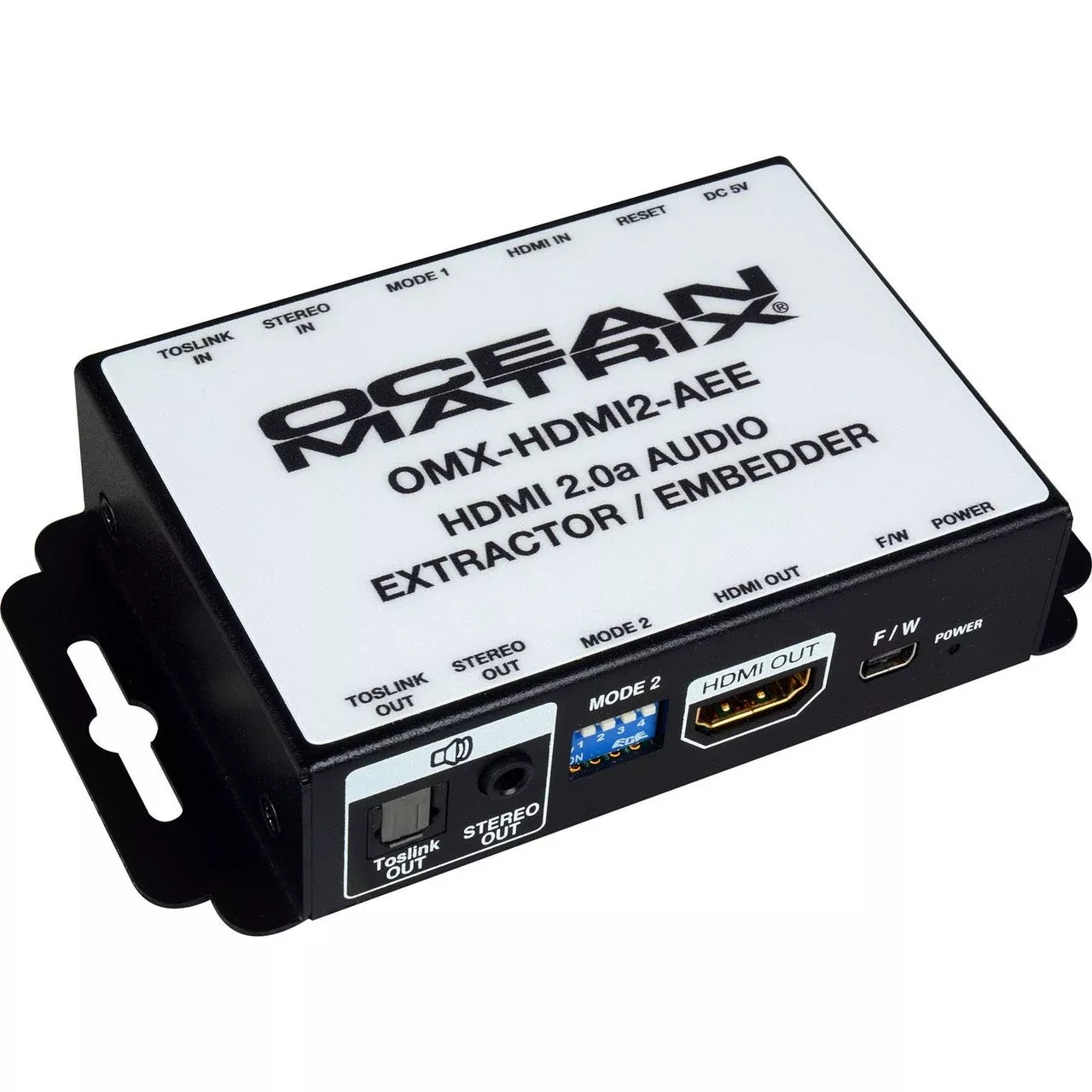

Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor/Embedder

Ocean Matrix OMX-HDMI2-AEE 4K HDMI 2.0 Audio Extractor/Embedder

What separates the HDMI2-AEE from the many one-way devices on the market is its dual functionality as both an audio extractor/de-embedder and an audio embedder/inserter. Audio can be extracted to both L/R analog stereo audio (3.5mm) and S/PDIF digital audio (Toslink). These same outputs are offered on the input side for embedding audio into the HDMI stream making it ideal for presenters.

Key Features

• Extracts Audio Signals from an HDMI Source
• Embeds Audio into an HDMI Signal from Analog or Digital Audio Source
• Supports 4K2K and HDR
• Supports ARC Audio Extraction and CEC Bypass
• Toslink S/PDIF and 3.5mm Stereo Inputs and Outputs
• External Dipswitches Control Embedder & Extractor Functions

Technical Specifications

HDMI 2.0a and HDCP 2.2 Compliant
Supports
4K2K@60 4:4:4 8bits, HDR 4K2K@60 4:2:0 10bits
Video Bandwidth
Single Link 594MHz (18Gbps)
HDMI Audio Format
PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
Optical Audio Format
PCM2, Dolby 5.1
Dimensions
5×2.6×1 in/127x67x27mm
Weight
6.3 oz/178g
