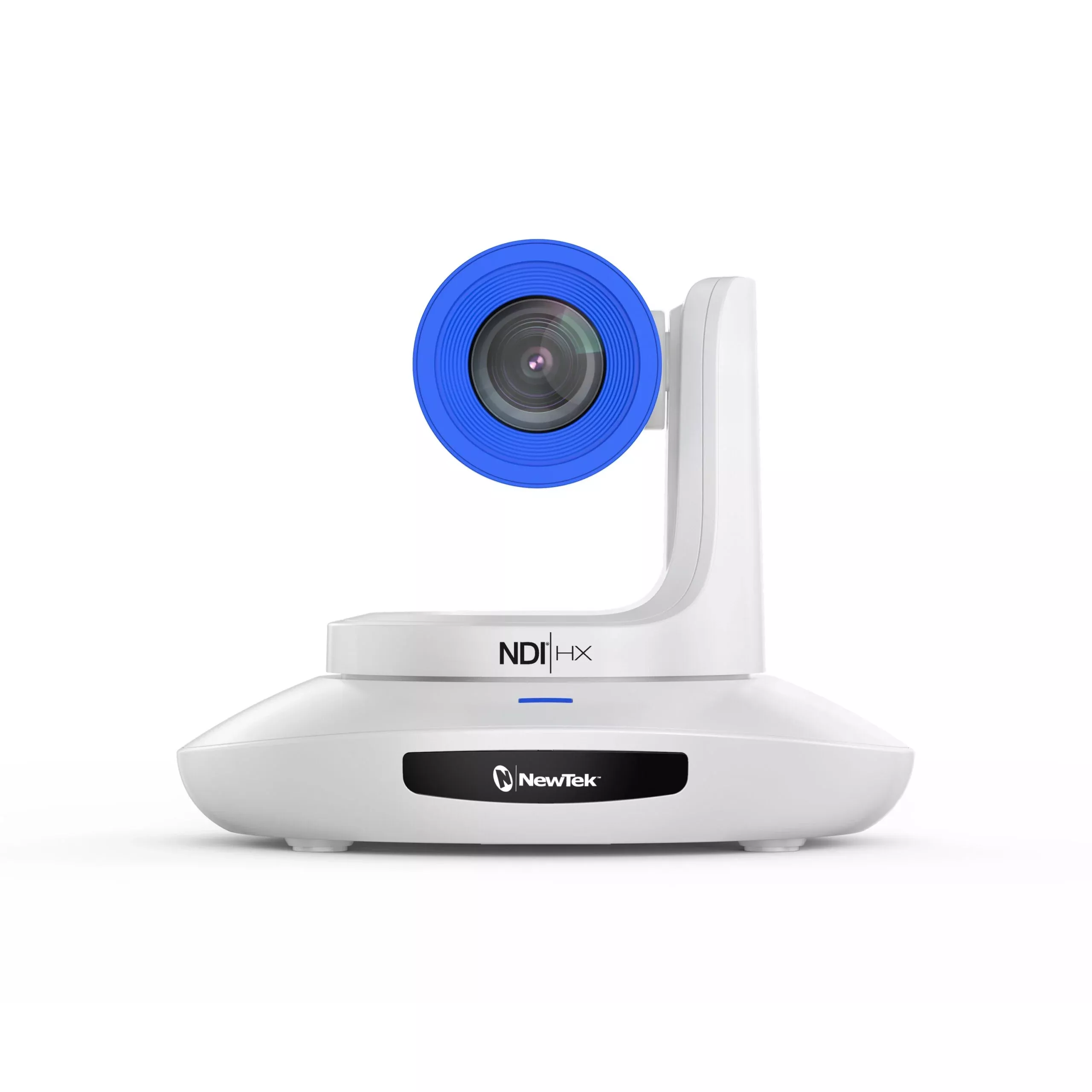

NewTek NDI|HX PTZ3 Camera, White

NewTek NDI|HX PTZ3 Camera, White

Simple, Flexible, Uncompromising.
The NewTek NDI|HX PTZ3 Camera is the very best and easiestway to acquire live video for input into any workflow and is the world’s firstcamera to offer NDI|HX3 – delivering low latency, all the while maintainingmaximum quality at efficient bandwidth. In addition, the all-new PTZ3 is thevery first NewTek camera to offer Professional XLR audio connectivity as wellas Tally, control, power, audio and video all using a single cable

NDI. Better.
By simply appearing on the network automatically, NDICameras can be easily integrated into any workflow. The PTZ3 breaks the moldwith the integration of NDI|HX3; giving the option to deliver low latencytransmission with reduced bandwidth, while maintaining the visually losslessstandards NDI users’ demand.

Audio. Better.
Better than ever audio is now possible with the ProfessionalXLR audio input available in the NDI|HX PTZ3 Camera. Delivering clean,professional level audio directly from the camera into the NDI network, the XLRfeature offers an array of connectivity options – all with a single connection.

Connect. Better.
No other camera on the market offers this level ofsimplicity and control; eliminating the need for, and the increasing cost of,long cable runs, complex setups, and management time to maintain. The NewTekPTZ3 can be added into any workflow with a single ethernet cable for HD videoup to 1080/60p, audio, PTZ presets and control, tally, and PoE

PTZ. Better.
Hard stop and stop movements during camera presets whichcreate an inferior viewing experience are a thing of the past – the PTZ3 offerssynchronized preset starts and a new motion algorithm that helps create anatural look and feel to any production

That’s not all – the PTZ3 is also now available in bothBlack and White body colors and includes ceiling and wall mounts, making itperfect for any setting including studios, hospitals, corporate meeting spaces,or for live events.

A PTZ Camera Like No Other
The PTZ3 allows video professionals, information technologymanagers, and system designers to explore new ways to expand, grow, and evolvetheir video productions using the network, while simultaneously streamliningintegration and installation by incorporating power over Ethernet.

Key Features

• Offers NDI|HX3 support
• Support for sophisticated devices with Professional XLR audioconnection
• Available in Black and White body colors
• One ethernet cable for audio and video, PTZ control andtally
• Compatible with NDI version 5
• Smooth, motor-driven pan-tilt-zoom operation and movementbetween presets
• Integrated and automatic tally support via NDI
• Native support for HD video formats up to 1080p 60

Technical Specifications

Video Output
NDI|HX, 3G-SDI, HDMI
Audio Output
NDI|HX, HDMI
Video Formats
1080p: 60, 59.94, 50, 30, 29.97, 25, 24,
1080i: 59.94, 50
720p: 60, 59.94, 50, 30, 29.97, 25
Zoom
20x Optical & 2x digital zoom
Sensor
1/2.86” High Quality CMOS Sensor
Shutter Speed
1/30 to 1/10,000 sec
Panning Angle
-170° to +170°
Panning Speed
Max 120°/sec
Tilting Angle
30° to +90°
Tilting Speed
Max 80°/sec
Aperture
F1 ~ F14
Focal Length
4.9~98mm
Horizontal Angle of View
60°(Far)-3,2°(Near)
Min. Object Distance
1.5m (Wide/Tele)
Min. Illumination
1.0 lux
Encoding
H.264/H.265, NDI|HX
Audio Input Mini
XLR, 3.5mm stereo audio input (line)
Embedded Audio
NDI, HDMI
Signal
Balanced (Mini XLR), Unbalanced (Line In)
Sample Rate
48KHz
Frequency
100Hz~20KHz
Total Harmonic distortion
-90dB
Tally
Supported
Anti-Flicker
Off/50Hz/60Hz
Gain Control
Auto, Manual
Control
NDI
User Interface
Web based or NewTek NDI Studio Monitor applications forremote
configuration, control, and monitoring
POE+
POE+ (IEEE 802.3 at)
Direct Power
DC12V
Power Consumption
8W
Operating Temperature
-10°C~50°C
Operating Humidity
20%~80%
Dimensions
8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm)
Weight
2.97lbs (1.35 kg)
Ceiling Mount
Included
Wall Mount
Included
Adapters
MiniXLR (f) to XLR(f) adapter included
