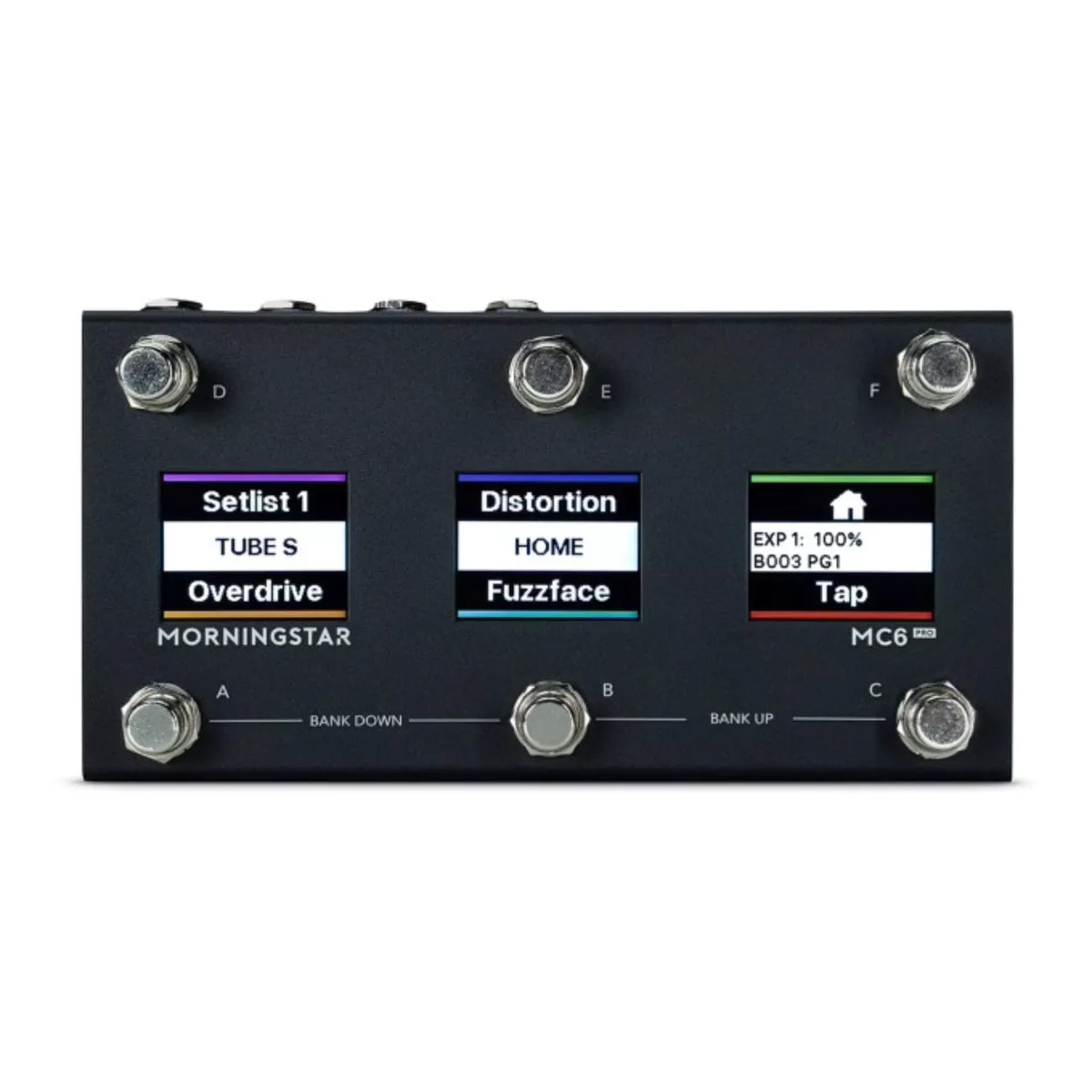

Morningstar FX MC6 PRO MIDI Controller

Morningstar Engineering MC6 PRO

The Morningstar MC6 PRO represents the pinnacle of Morningstar Engineerings MIDI controller designs, offering robust and highly flexible control over any device you might find on a pedalboard. Each of its six footswitches corresponds to an individual preset, with each preset capable of sending up to 32 different MIDI messages. Supported messages include program changes, control changes, note on/off, SysEx, MIDI Clock, and even internal state management commands for the MC6 PRO itself. With four pages of six presets across 128 banks, the MC6 PRO offers an immense range of control possibilities.

A first for Morningstar, the MC6 PRO features vibrant, full-color displays for each footswitch, allowing for clear labeling and quick navigation during performances. Color Strips provide additional visual feedback by brightening or dimming to indicate preset status, and a collection of built-in icons adds a playful and customizable touch to the interface.

The MC6 PRO also delivers an impressive range of connectivity options. It includes four assignable Omniports1/4″ TRS jacks that can function as MIDI outputs, expression pedal inputs, or auxiliary switch inputsalongside standard 5-pin DIN MIDI input and output, and side-mounted 3.5mm TRS MIDI ports. New to the MC6 PRO are USB-C Device and Host ports, enabling direct connection to computers or MIDI-enabled pedals with USB ports. Two onboard relay ports allow for amp channel switching or external control of pedals requiring a footswitch input.
Bringing together a massive feature set with thoughtful design, the Morningstar MC6 PRO is the ultimate MIDI controller for demanding pedalboard setups.

Features:

• Powerful and highly flexible MIDI controller for pedalboards

• Six footswitches, each corresponding to a preset with up to 32 message assignments

• 128 banks, each with four pages of six presets

• Supports MIDI PC, CC, Note, SysEx, MIDI Clock, device state options, keystrokes, and more

• Full-color display screens with customizable labels, icons, and Color Strips for visual feedback

• 5-pin DIN MIDI input and output

• Four assignable 1/4″ TRS Omniports for MIDI output, auxiliary switch input, or expression pedal input

• 3.5mm TRS MIDI input and output

• USB-C Host and Device ports for flexible connectivity

• Two relay ports for external amp switching or pedal control

• Powered via standard pedal power supplies or USB

• Compatible with the Morningstar Editor App for preset creation, setlist management, MIDI Waveform Generators, and more
