Lynx Technik PTG 1802 Testor Lite 3G SD/HD/3G Test Pattern Generator

Lynx Technik PTG 1802 Testor Lite 3G SD/HD/3G Test Pattern Generator

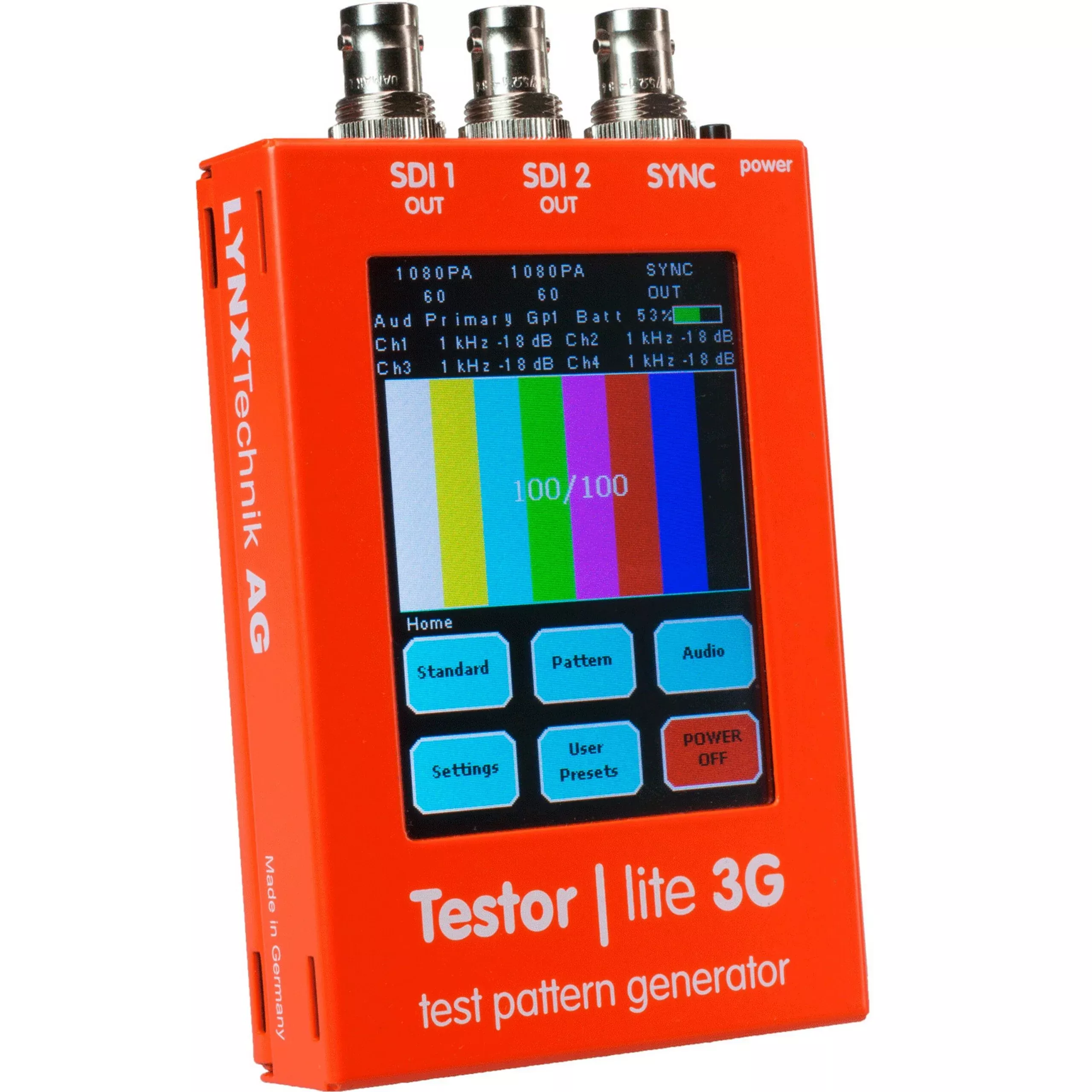

The LYNXTechnikTestor | lite 3G PTG 1802 is a compact SDI video and audio testgenerator designed to address a multitude of test and verification needs inmodern digital infrastructures. The large color touch-screen provides a simple,intuitive user interface and the integrated rechargeable battery will providefor up to 4 hours of continuous use. External power / charge is provided viathe USB port. Note: USB port is also used for firmware updates.

Key Features

• Large colortouch-screen
• Intuitiveuser interface
• Integratedrechargeable battery
• Externalpower / charge is provided via the USB port

Technical Specifications

SDI Outputs
2 x SDIvideo on 75 Ohm BNC connectors
Each outputis the same format and frequency, but can have different patterns
SMPTE 424M,SMPTE 292M, SMPTE 259M
Video Formats
SDTV270Mbit: 525 (480i/59.94), 625 (576i/50)
HDTV1.5Gbit: 1080i/60, 1080i/59.94, 1080i/50, 1080p/30, 1080p/29.97, 1080p/25,1080p/24, 1080p/24.98, 1080psf/25, 1080psf/24,1080psf/23.98, 720p/60,720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25, 720p/24, 720p/23.98
HDTV 3G:1080p/60, 1080p/59.94, 1080p/50
Multiple 3G Streaming Modes
One 3Gstream, on both connectors. Direct mapping Level A (SMPTE 425)
Twoindividual 1.5G streams, one per BNC Connector. Dual Link. (SMPTE 372)
Twoindividual 1.5G streams multiplexed into a single 3G stream.
Dual LinkLevel B (SMPTE 425)
Embedded Audio Generator
4 xindependent audio channels (2 Stereo pairs) each with adjustable level andfrequency
Presetfrequency selections: 50, 100, 200, 250, 400, 500, 800, 1k, 2k, 4k, 8k, 16kHz
Leveladjustments: 0 to -79dBFS in 1dB steps
All 4channels available to both SDI output embedders, which can embed 8 channelsinto any two groups (selectable). Each SDI Embedder can be configuredindependently with different groups and channel assignments.
Note: WhenSMPTE 525 dual stream or dual link mode is used, audio is embedded into bothstreams.
Analog Reference Sync Output
1 x analogsync output, BNC connector 75 Ohm
Referenceoutput is the same standard as the selected SDI output
SDTV =Bi-level analog sync only (no burst or video content)
HDTV =Tri-level analog sync
Large Internal Pattern Library
StaticPatterns: 100 Split Colorbars, 75 Split Colorbars, 100 Full Bars, 75 Full Bars,SMPTE 219 Colorbars, Full Field Red, Full Field Green, Full Field Blue, FullField Black, Full field White, Pluge, Crosshatch, 5-Step Staircase, Valid Ramp,Limit Ramp, Multiburst, Frequency Sweep, Pathological EQ/PLL
DynamicPatterns: EBU A/V Sync Pattern, Moving Boxes
3D Patterns:3D Boxes (left eye / right eye), 3D Gray Boxes (left eye/right eye)
Multiple Overlays (Selectable)
TextOverlay: Single line, 16 characters max, static or scrolling horizontally
Circle: 1pixel circle centered on test pattern
Markers:Safe Action or Safe Title markers per SMPTE RP218-2002
Power Supply
Internalrechargeable battery. Full charge provides approx 4 Hours continuous use
Physical
Size(including connectors): 130 x 77 x 23mm (5.12 x 3.03 x 0.91″)
Weight: 250g(8.82 oz)
AmbientTemperature: 41 to 104F
Humidity:90% non condensing
Safety: IEC60950-1.2005/ EN 60950-1:2006
Item Includes
PTG 1802Testor | lite 3G Test Pattern Generator, USB-DCP AC power supply (+regional ACplug adapters), USB cable, Quick Reference, User Manual
