Lowell VWS-214

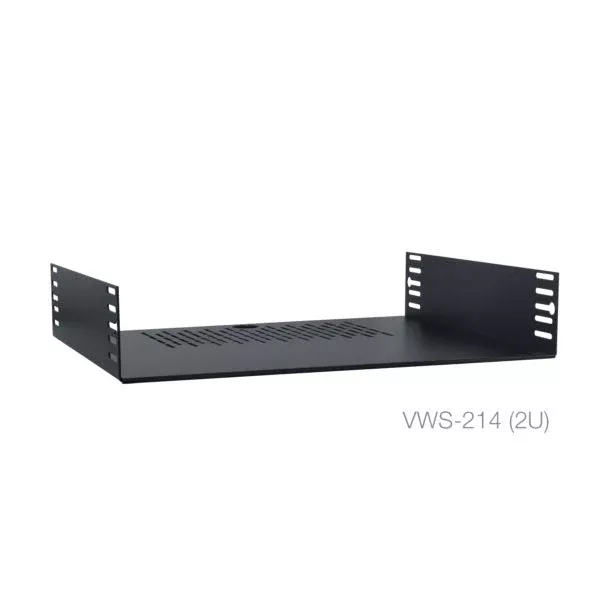

VWS-214: Variable Width Shelf 2U/3U x 14?D

Rack shelf with side supports mounts behind rack rails, expanding to provide extra width for equipment with larger chassis. Shelf requires rack height of 21U or taller.

FEATURES

• Mounts behind front rack rails (screws into holes on inside angle of rails) using two standard rack screws with nuts on inside slots of each side.
• Side supports can be installed with long or short side up to emulate 2U or 3U panel space
• Depth:  14 in.
• Center section is 16-gauge steel; side supports are 14-gauge steel.
• Bottom vents and cable access opening
• Includes 10-32 mounting screws with nuts
• Load Capacity: 50 lbs.

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant

A&E SPECIFICATIONS

• The rackmount shelf shall be Lowell Model No. VWS-214 which shall have an adjustable width of 17.5″–22″. It shall have panel space of 2 or 3 rack units depending on how it is assembled. Load capacity shall be 50 lbs. The shelf shall include provisions for cable entry and wire lacing. The center section shall be formed from 16-gauge US steel; side supports shall be formed from 14-gauge US steel. The shelf shall be finished in black powder epoxy paint. It shall include 10-32 mounting screws with nuts.
