Home » Shop » Distributed Audio » Lowell TLM-1670A

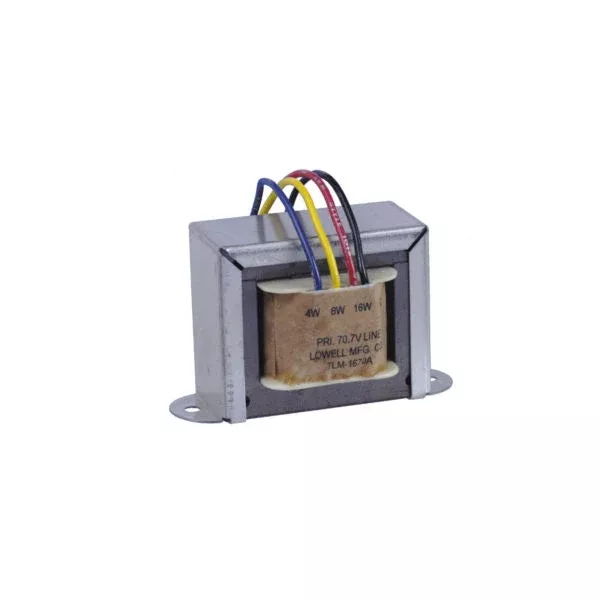

Lowell TLM-1670A

Original price was: $60.46.Current price is: $30.73.

Sale!
SKU: TLM-1670A Categories: ,
Share


Transformer TLM-1670A (16W)


High performance line-matching 16W transformer.


FEATURES

  • Primary Voltage:  70V
  • Power Rating:   16W
  • Primary Taps:  4, 8, 16W
  • Secondary Impedance:  8, 4 ohms
  • Frequency Response:  50Hz–15kHz (±1dB)
  • Lead Length:  18 in.
  • Leads:  Color-coded
  • Unit Size:  2.32 in. x 3.69 in. x 2.375 in.

A&E SPECIFICATIONS

  • The line matching 16W transformer shall be Lowell Model TLM-1670A. Primary voltage shall be 70V with a power rating of 16 watts. Primary taps shall be available at 16/8/4 watts. Secondary impedance taps shall be available at 8 ohms and 4 ohms. All taps shall have clearly marked color-coded leads. Frequency response of the transformer shall be 50Hz–15kHz (±1dB) with insertion loss not to exceed 0.6 dB.
