Lowell NR2P-4515

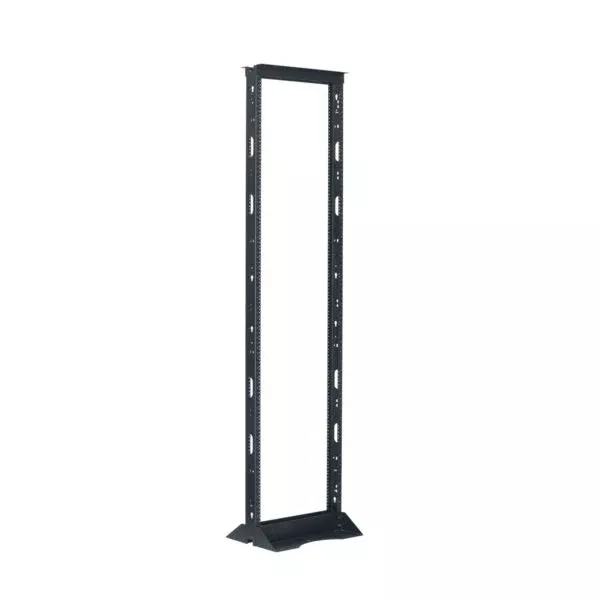

NR2P-4515: Networking Rack 45U x 15?D

Two-post, gangable networking rack saves space while providing full access to 19″ rackmounted electronics such as patch panels, servers, switches, UPS’s, etc. and the open design provides unrestricted airflow — ideal for a wiring closet, telecommunications, broadcast, data and switching applications.

SPECIFICATIONS

• Rack Space: 45U
• Overall Height: 84.25 in.
• Overall Depth: 15.00 in.
• Overall Width: 20.25 in.

FEATURES

• Two double-sided 12-gauge steel channel rails (3 in. wide)
• Holes tapped 12-24 on EIA spacing
• Numbered RU increments
• Multiple cable pass-through points
• Grounding studs at top and bottom
• Two-piece 12-gauge steel top and base
• Four holes for anchors (not included)
• Assembly and mounting hardware
• 800 lbs. load capacity
• Smooth black finish
• Ships unassembled

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• Certified US steel
• Made in the USA

A&E SPECIFICATIONS

• The EIA/TIA compliant two-post networking rack shall be Lowell Model NR2P-4515, which shall measure 20.25″W x 15.00″D (at base) x 84.25″H, providing panel space of 45 rack units. Rack construction shall be a two-piece steel top and two-piece steel base, which shall feature four holes for anchoring to the floor (anchors not included). The networking rack shall include two 12-gauge steel (3″W) double-sided vertical channels with mounting holes tapped 12-24 on EIA mounting centers and feature printed RU markings. Top, base, and vertical channels shall have a smooth black powder epoxy finish. The rack shall ship unassembled and include assembly and panel mounting hardware.
