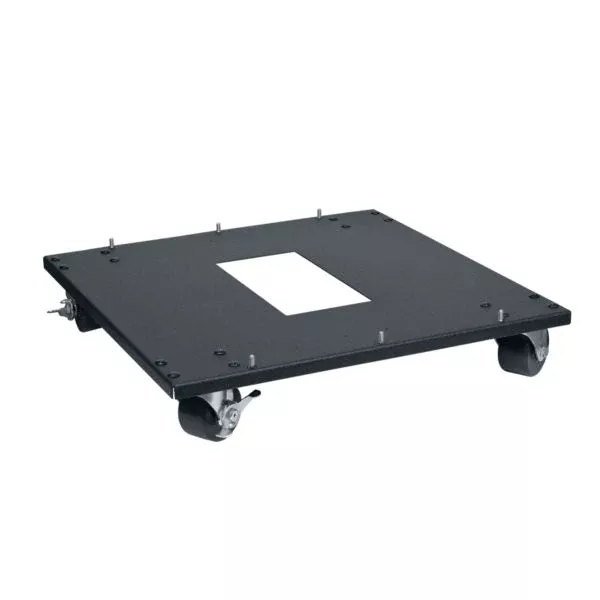

Lowell LMSB-22FL

LMSB Series: Mobile Shallow Base (23?W racks)

Mobile base mounts under the cabinet frame. Casters are set to the perimeter to enhance stability of a loaded rack.

FEATURES

• For use with LER, LFR and LGR Series racks
• Fully-welded 14-gauge steel construction
• Black wrinkle powder epoxy finish
• Center opening for cable management
• 3 inch swivel casters (2 non-locking, 2 locking)
• Hardware for bolt-on installation
• 21.88 in. deep (for 22 in. deep rack)
• Choose standard or fine-floor casters. Base with standard casters increases rack height 4.062 inches, 1400 lbs. total load rating. Base with fine floor casters increases rack height 4.33 inches, 800 lbs. total load rating.

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The rack’s mobile base shall be Lowell Model LMSB-_________, which shall be 14-gauge welded steel finished in black wrinkle powder epoxy with 10″ x 5″ center opening. The base shall mount under the rack frame. The ____________ (standard/fine floor) heavy-duty 3″ swivel casters—two locking—shall have a total load rating of _______lbs. (800 lbs. or 1400 lbs.). The mobile base shall raise the rack height ______ inches (4.062″ or 4.33″). Mounting hardware shall be included.
