Lowell LGR-2427

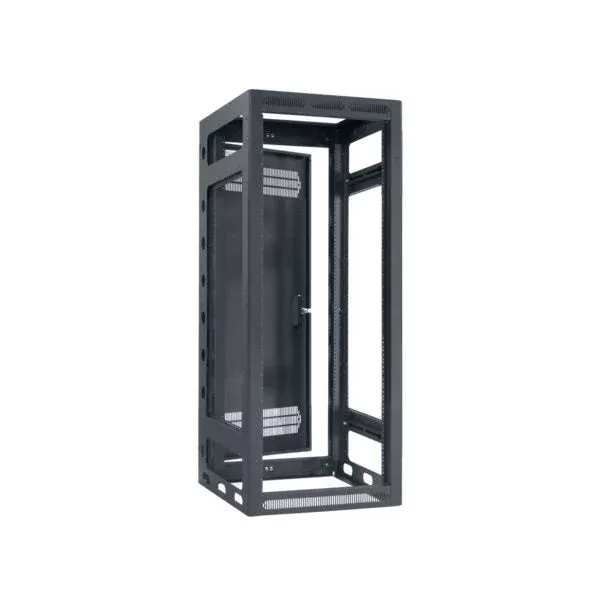

LGR-2427: Gangable Rack 24U x 27?D

Gangable rack with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.

SPECIFICATIONS

• Rack Space:  24U
• Height:  48.125 in.
• Width:  23.06 in.
• Depth:  27.00 in. (24.34 usable)

FEATURES

• Configurable top has 7U opening for 19 in. panels (includes solid closure panels)
• Open frame with multiple 2 in. holes on sides for cable runs between racks
• Open front (optional door)
• Rear door with top/bottom vents and key lock
• Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
• Cable Management:  Multiple lacing points, holes, knockout panels
• Pilot Point screws with captive washers
• Grounding stud
• Threaded inserts (for optional leg levelers)
• Beveled corners
• Black wrinkle powder epoxy finish
• Load capacity 3150 lbs.

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• UL 2416 Listed
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The EIA/TIA/RoHS compliant, gangable rack shall be Lowell Model No. LGR-2427. Overall measurements shall be 48.125″H x 27″D x 23.06″W with panel space of 24 rack units. Load capacity shall be 3150 lbs. The rack shall include a recessed rear door with vents and key lock; top with 7U opening and compound knockouts; open base with grounding stud; two pairs adjustable mounting rails with printed RU increments; knockout panels with combination knockouts above/below rear door; blank project panel below rear door; and provisions to mount an optional surface-mount front door (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle powder epoxy finish. It shall be listed to UL 2416.
