Lowell LGNR-4027

Original price was: $773.02.Current price is: $614.16.

Sale!
SKU: LGNR-4027 Categories: ,
Share

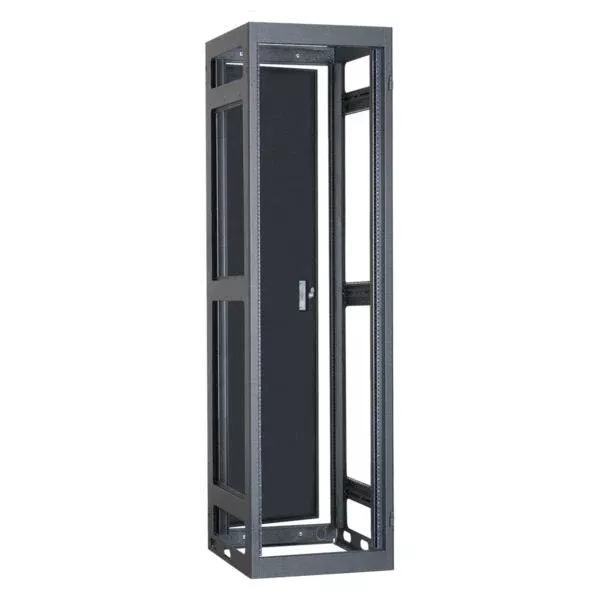

LGNR-4027: Gangable Narrow Rack 40U x 27?D


40U x 27″D Gangable rack with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.


SPECIFICATIONS

  • Rack Space:  40U
  • Height:  76.125 in.
  • Width:  22.00 in.
  • Depth:  27.00 in. (24.34 usable)

FEATURES

  • Configurable top has 10U opening for 19 in. panels (includes solid closure panels)
  • Open sides and front (optional door)
  • Recessed solid steel rear door includes handle and keyed lock
  • Two-pair fully adjustable rails tapped 10-32 with printed RU scale
  • Cable Management:  Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs.

COMPLIANCE & CERTIFICATION

  • EIA/TIA compliant
  • UL 2416 Listed
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.

A&E SPECIFICATIONS

  • The EIA/TIA compliant, UL Listed (UL2416) 19″ gangable equipment rack shall be Lowell Model No. LGNR-4027, which shall measure 22″W x 27″D x 76.125″H (40U). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions and finished with a durable black powder epoxy coating. The rack shall include a solid steel rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall have integral rails with mounting holes tapped 10-32 to accept 19″W solid panels included as shipping stiffeners or optional accessories. The base shall include a grounding stud and provisions to accept leg levelers (optional) or anchor bolts (by others).
