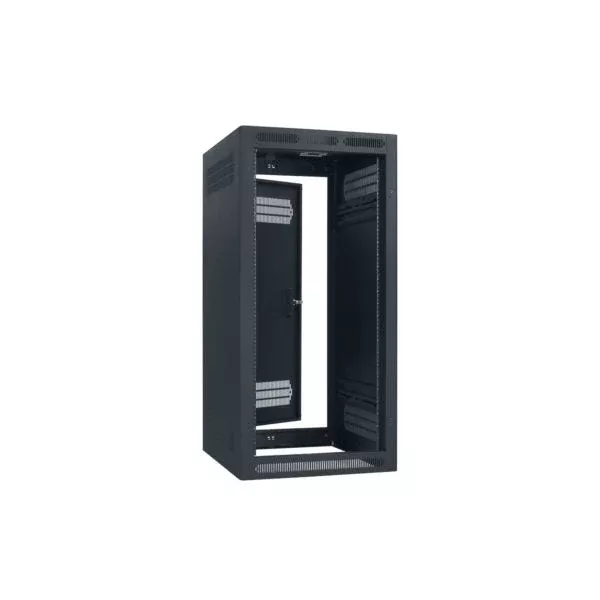

Lowell LER-2427

LER-2427: Enclosed Rack 24U x 27?D

24U x 27″D stand-alone floor rack with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.

SPECIFICATIONS

• Rack Space:  24U
• Height:  48.125 in.
• Width:  23.06 in.
• Depth:  27.00 in. (24.34 usable)

RACK FEATURES

• Welded top/sides with vents
• Open front (optional door)
• Recessed rear door with vents and key lock
• One-pair fully adjustable rails tapped 10-32 (printed RU scale)
• Cable Management:  Multiple lacing points, knockout panels
• Pilot Point screws with captive washers
• Grounding stud
• Threaded inserts (for optional leg levelers)
• Beveled corners
• Black wrinkle powder epoxy finish
• Load capacity 800 lbs.

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• UL 2416 Listed
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The EIA/TIA/RoHS compliant, stand-alone floor rack shall be Lowell Model No. LER-2427. Overall measurements shall be 48.125″H x 27″D x 23.06″W with panel space of 24 rack units. Load capacity shall be 800 lbs. The rack shall include a recessed rear door with vents and key lock, welded side panels with vents, steel top with vents, open base with grounding stud, one pair adjustable front mounting rails with printed RU increments, combination knockouts above and below rear door, and provisions to mount an optional surface-mount front door or rear rails (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle powder epoxy finish. It shall be UL Listed to UL2416.
