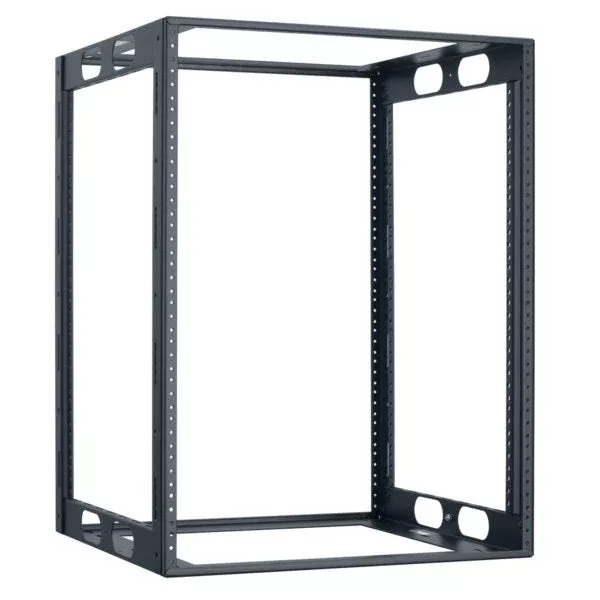

Lowell LCR-1416

LCR-1416: Credenza Rack 14U x 16?D

Rugged welded rack for credenzas or cabinets is 16-gauge steel with 11-gauge corner post rails. Ships ready to install.

SPECIFICATIONS

• Rack Space:  14U
• Height:  25.44 in.
• Width:  19.25 in.
• Depth:  16.00 in.

FEATURES

• Open frame (top/bottom/sides/front/back)
• Corner post mounting rails tapped 10-32, punched for clean wire tie-off
• Side obrounds for cable management
• Base/top with grounding studs and provisions to accept anchor bolts (not included)
• Corner holes/slots for anchoring and positioning
• Load capacity 250 lbs.
• Smooth black powder epoxy finish
• Panel mounting hardware

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

• Revit Models: LCR Series

A&E SPECIFICATIONS

• The EIA/TIA compliant, open frame rack shall be Lowell Model No. LCR-1416, which shall be built to EIA standards for mounting electronics. Dimensions shall be 25.44″H x 16.00″D x 19.25″W with 14U panel space. The rack shall be fully welded certified U.S. steel construction with 16-gauge top and bottom, 11-ga. corner post rails tapped 10-32 and multiple openings for cable and wire management. Finish shall be black semi-gloss powder epoxy paint.
