Lowell LCR-1016

Original price was: $337.33.Current price is: $214.55.

Sale!
SKU: LCR-1016 Categories: ,
Share

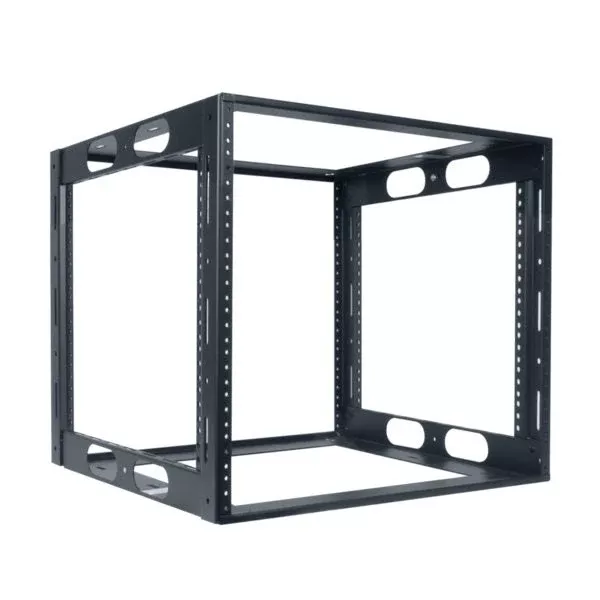

LCR-1016: Credenza Rack 10U x 16?D


Rugged welded rack for credenzas or cabinets is 16-gauge steel with 11-gauge corner post rails. Ships ready to install.


SPECIFICATIONS

  • Rack Space:  10U
  • Height:  18.44 in.
  • Width:  19.25 in.
  • Depth:  16.00 in.

FEATURES

  • Open frame (top/bottom/sides/front/back)
  • Corner post mounting rails tapped 10-32, punched for clean wire tie-off
  • Side obrounds for cable management
  • Base/top with grounding studs and provisions to accept anchor bolts (not included)
  • Corner holes/slots for anchoring and positioning
  • Load capacity 250 lbs.
  • Smooth black powder epoxy finish
  • Panel mounting hardware

COMPLIANCE & CERTIFICATION

  • EIA/TIA compliant
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.

A&E SPECIFICATIONS

  • The EIA/TIA compliant open frame rack shall be Lowell Model No. LCR-1016, which shall be built to EIA standards for mounting electronics. Dimensions shall be 18.44″H x 16.00″D x 19.25″W with 10U panel space. The rack shall be fully welded certified U.S. steel construction with 16-gauge top and bottom, 11-ga. corner post rails tapped 10-32 and multiple openings for cable and wire management. Finish shall be black semi-gloss powder epoxy paint.
