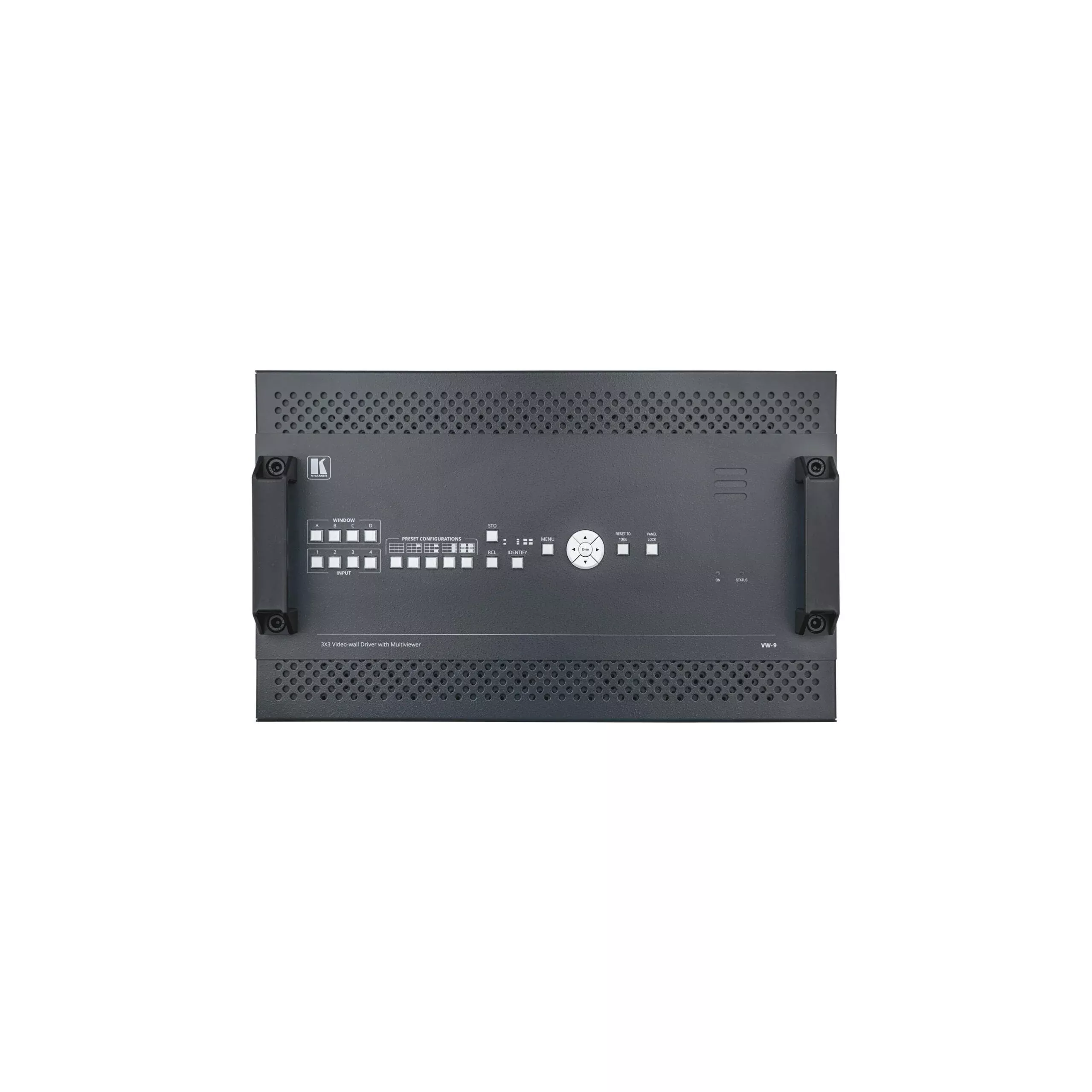

Kramer VW-9 3 x 3 Video Wall Driver

Kramer VW-9 3 x 3 Video Wall Driver

Kramer’s VW-9 HDMI 2.0 Multiview Video Wall Processor is anadvanced 4-input and 10-output video processor, offering a videowall driverwith multiviewer features, scaling, customized screen layouts, and fast, cleanvideo switching between inputs.

The unit also features audio switching and incorporates ananalog audio output in addition to the embedded HDMI audio. It offers a user-friendlyweb UI, RS-232, RS-485, RS-422 control options, and includes bezel correction,picture adjustment options, and HDCP and EDID configuration.

Key Features

• Fast switching between input channels and combined multiplesource images on video wall
• Suitable for any wall configuration with up to 10 displays -1×10, 2×5, 3×3, 5×2, etc.
• Handles HDMI 2.0 signals with Deep Color and HDCP 2.2sources
• Input and output resolution up to 4K @60Hz, 4:4:4 colorsampling
• Scales up and down to any resolution – up to 4K @60Hz, 4:4:4color sampling
• PiP, PoP, quad-view, and multiple customized screen layoutconfigurations on the videowall
• Rotation (90 Degrees and 270 Degrees) in full screen layout
• Bezel correction
• Stereo audio output
• Control by web UI, RS-232, RS-485, RS-422 and telnet
• Firmware upgrade via USB port
• Dual built-in power supply

Technical Specifications

INPUTS
4 x HDMI 2.0
OUTPUTS
10 x HDMI 2.0
Audio Output
Terminal block 3 pole, stereo
IMAGE PROCESSING
Input Resolutions
4096 x 2160p (60Hz, 50Hz, 24Hz), 3840 x 2160p (60Hz, 50Hz,30Hz, 25Hz, 24Hz), 2560 x 1080p (60Hz), 1920 x 1080p (60Hz, 50Hz, 30Hz, 25Hz,24Hz), 1920 x 1080i (60Hz, 50Hz), 1280 x 720p (60Hz), 720 x 480p (60Hz, 50Hz),720 x 576p (50Hz), 640 x 480p (60Hz, 50Hz)
Input and Output Chroma Sampling
4:4:4
Output Color Depth
24 bpp
Video Bandwidth
Up to 18 Gbps
Output Resolutions
4096 x 2160p (60Hz ,50Hz), 3840 x 2160p (60Hz, 50Hz, 30Hz),2048 x 2048p (57Hz), 1920 x 1200p (60Hz), 1920 x 1080p (60Hz, 50Hz, 30Hz), 1600x 1200p (60Hz), 1280 x 720p (60Hz, 30Hz)
HDMI Compliance
HDMI 1.4 and HDMI 2.0
HDCP Compliance
HDCP 1.4 and HDCP 2.2
CONTROL
RS-232 / Telnet
1 x D9 female connector
RS-485 / RS-422
5-pole terminal block
Ethernet Port
1 x RJ45
Web Interface
Embedded Web UI
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 Degrees C to 40 Degrees C
Operating Humidity
0% to 80% RH
BALANCED LINE LEVEL INPUT
Storage Temperature
-20 Degrees C to 60 Degrees C
GENERAL
Physical Dimensions
44cm x 26.4cm x 42.1cm (1.4′ x 0.8” x 1.3′) W, D, H
Shipping Dimensions
49cm x 35.5cm x 49cm (1.6′ x 1.1′ x 1.6′) W, D, H
Product Weight
14.8.3kg (32.62lbs) approx
Shipping Weight
15.6.3kg (34.3lbs) approx
PRODUCT SIZE
44.00cm x 26.40cm x 42.10cm (17.32” x 10.39” x 16.57”) W, D,H
PRODUCT WEIGHT
14.8kg (32.6lbs) approx.
PRODUCT PACKAGING SIZE
490.00cm x 355.00cm x 490.00cm (192.91” x 139.76” x 192.91”)W, D, H
PRODUCT PACKAGING WEIGHT
17.3kg (38.1lbs) approx.
