Global Truss OD Box Circle (6.56′)

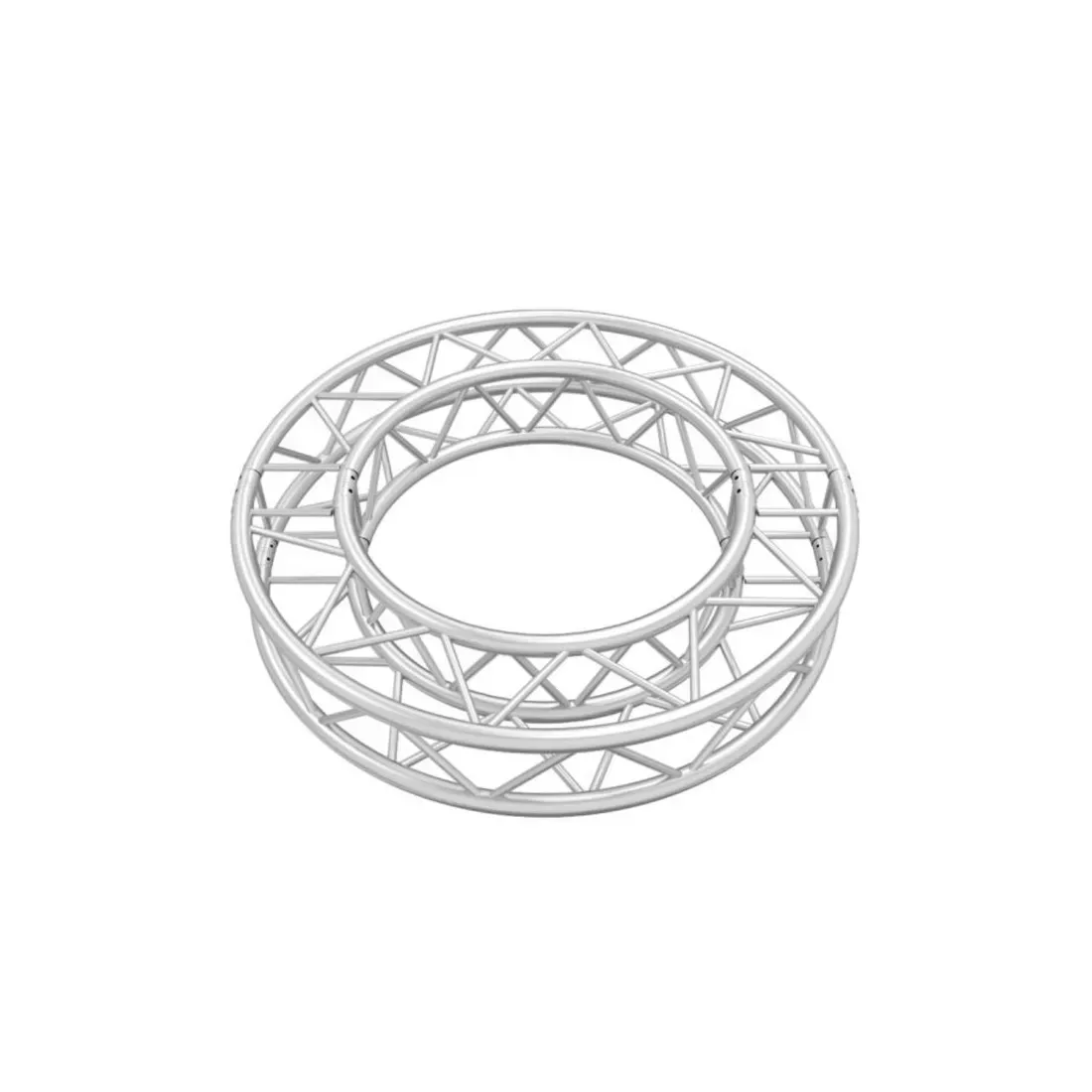

The Global Truss SQ-C2-180 is a modular circle truss kit that forms a 6.56-foot (2.0-meter) outer diameter ring from two 180-degree arc segments. Designed for the F34 square truss series, this complete system creates a strong, symmetrical circle with a 4.66-foot inside diameter, making it ideal for circular lighting grids, suspended ring truss applications, signage frames, and scenic display elements in concerts, corporate events, theaters, and trade shows.Constructed from lightweight aluminum alloy, the SQ-C2-180 features a 290mm (11-7/16″) overall width with 50mm main tubes, 20mm diagonal bracing, and 2mm wall thickness for reliable strength. The complete kit includes two SQ-C2 ARC180 arc segments with a total unit weight of 65 lbs, ensuring manageable transport and setup for production crews. It utilizes Global Truss’s precision connection system with pins and clips for fast, secure assembly, and integrates seamlessly with standard F34 truss components for versatile rigging configurations. Read more

Features

• Forms a 6.56 ft (2.0 m) outer diameter circle from two 180° arc truss segments
• 4.66 ft inside diameter, ideal for compact lighting and display builds
• 11-7/16″ (290mm) overall width for compatibility with F34-type trussing
• Constructed with 2″ (50mm) outer tubing and 3/4″ (20mm) bracing
• 0.08″ (2mm) aluminum wall thickness for strength and portability
• Total unit weight of 65 lb for easy handling and rigging use
