EtherWAN EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EtherWAN’s EasyLink is apre-configured point to point (PtP) Bridge kit which allows for connectingremote locations wirelessly up to 2 miles away. EasyLink’s simple setup allowsyou to connect locations by mounting the hardware, powering them on andaligning the units using the built-in alignment LEDs. Each kit contains twopaired units that connect automatically using a highly secure, unique, hiddenSSID and randomly-generated passphrase to keep your valuable equipment secureright out of the box. No need for complicated setup software, just plug it in,aim it and you are connected.
Key Features
- Mount units to a pole or wall using included mountkit
- Signal strength LED’s for easy alignment
- Just power and align using supplied PoEinjectors and power supplies
- No technical expertise needed
- Encrypted & Authenticated WirelessConnection (WPA2)
- Every kit has unique SSID and security settings
- Fanless and ruggedized outdoor IP67 enclosure(Rainproof)
- Wide operating temperature range (-40 to 167°F)
- Connections up to 2 miles away
Technical Specifications
Wireless
Frequency 5 GHz
Max data rate 300 Mbit/s
Number of chains: 2
Standards 802.11a/n
WPA2 Passphrase
256-bit AES-CCM Encryption
Dynamic Frequency selection
Layer 2 Features
Auto-negotiation for port speedand duplex
Redundant Protocols (alwaysenabled)
IEEE 802.1D STP
IEEE 802.1w RSTP
IEEE 802.1s MSTP
Ethernet
10/100/1000BASE-T Passive PoE
Wireless
802.11a/n
LED Indicators
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3x full duplex and flowcontrol
IEEE 802.1D STP
IEEE 802.1s MSTP
IEEE 802.1w RSTP
IEEE 802.11w Management FrameProtection (MFP)
Power
PoE in (Passive PoE)
PoE in input Voltage 6-30V
Max power consumption 10W
Casing Material
UV Protected Polystyrene case
Dimensions
185 x 185 x 63.5mm (W x D x H)
7.28″ x 7.28″ x2.5″
Weight (shipping)
5.3lbs (2.4kg)
Installation Type
Pole/Wall
Operating Temp.
-40 to 75°C (-40 to 167°F)
Storage Temp.
-45 to 85°C (-49 to 185°F)
Relative Humidity
5% to 95% (non-condensing)
Wind Survivability
200km/h
*Power supply rated 5 to 158°F
ISO
Manufactured in ISO-9001 facility
EMI
FCC Part 15B Class A
PCC Part 15C
Environmental Test Compliance
IEC 60068-2-6 Fc (VibrationResistance)
EN 61000-4-3 (Radiated RFI)
Warranty
3 Years

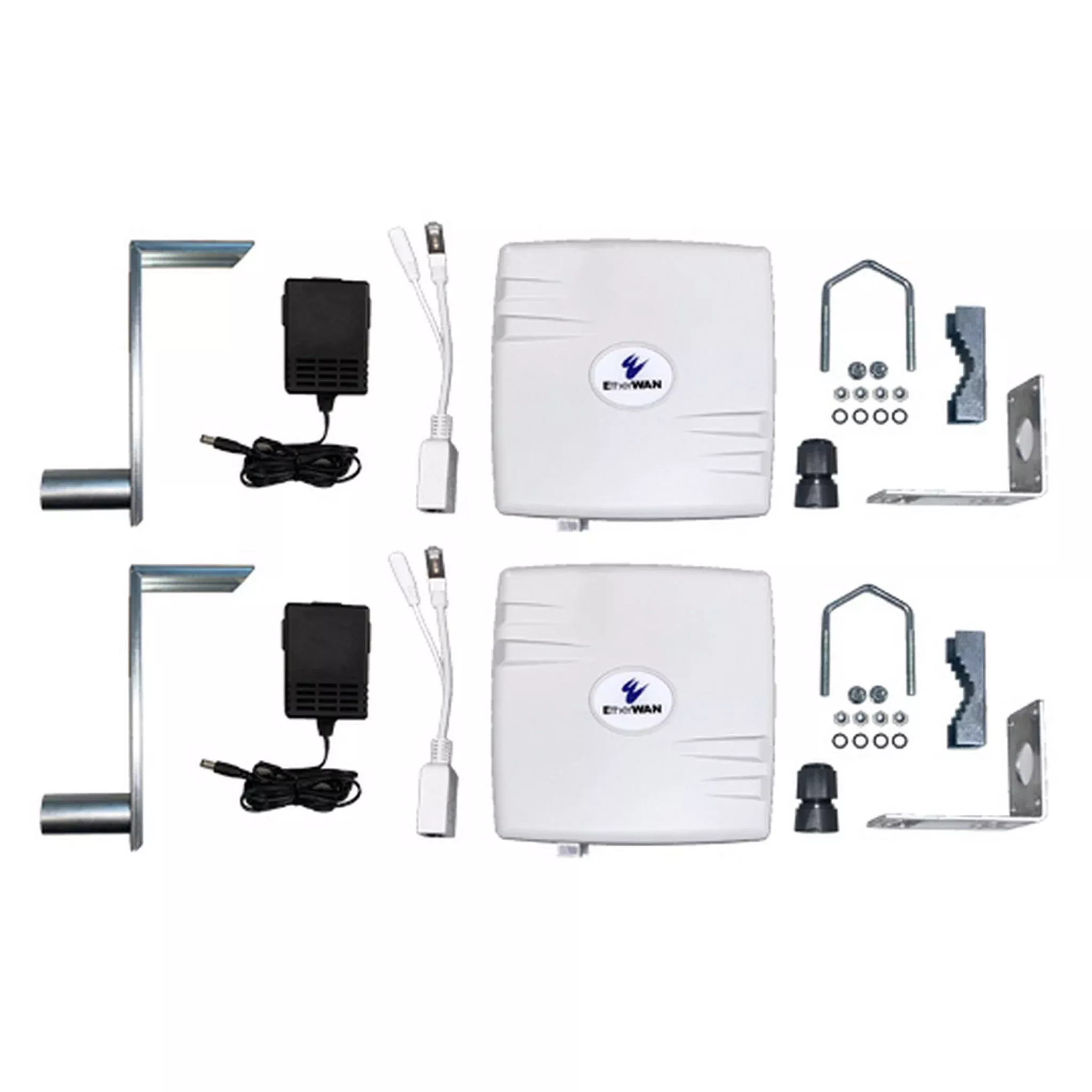

What’s Included
2 x units preconfigured to connectwith optimal performance up to 300Mbps
Includes all Mounting Hardware
Includes 2 x power supplies and 2x PoE injectors
