EtherWAN EasyLink MP Preconfigured Multipoint IP67 Wireless Bridge Kit, 2 Clients

EtherWAN EasyLink MP Preconfigured Multipoint IP67 Wireless Bridge Kit, 2 Clients

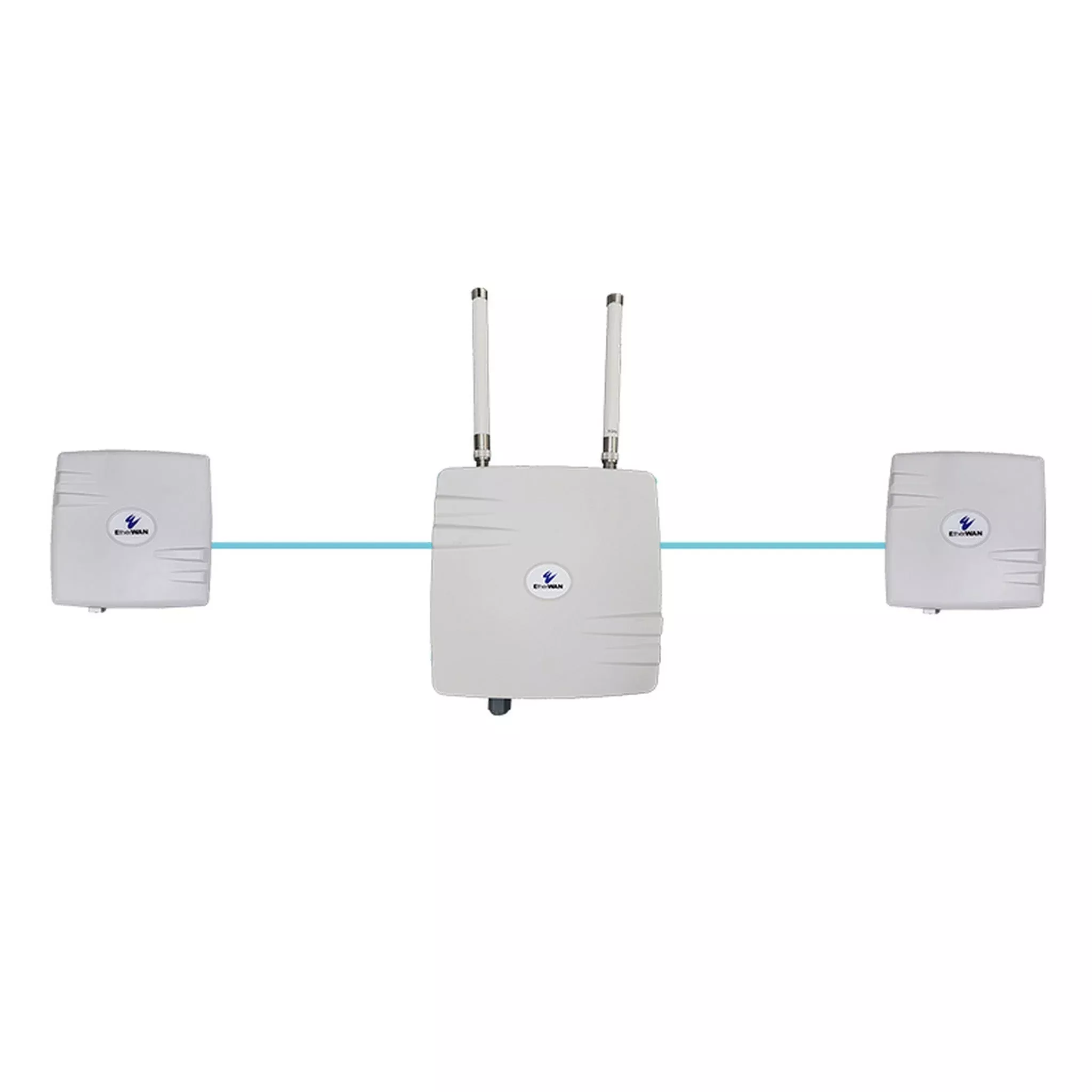

EtherWAN’s EasyLink is apre-configured Multipoint Bridge kit which allows for connecting a set ofremote locations wirelessly up to 2 miles away. EasyLink MP’s simple setupallows you to connect locations by mounting the hardware, powering them on, andaligning the units using the built-in alignment LEDs. Each kit contains onecentral bridge unit plus two/four/six auxiliary units that connectautomatically using a highly secure, unique, and hidden SSID and randomlygenerated passphrase to keep your valuable equipment secure right out of thebox. No need for complicated setup software, just plug it in, aim it and youare connected.

Key Features

• Mount units to a pole or wall using includedmount kit
• Signal strength LED’s for easy alignment
• Just power and align using supplied PoEinjectors and power supplies
• No technical expertise needed
• Encrypted & Authenticated WirelessConnection (WPA2)
• Every kit has unique SSID and security settings
• Management Frame Protection (MFP) enabled
• Fanless and ruggedized outdoor IP67 enclosure(Rainproof)
• Wide operating temperature range (-40 to 167°F)
• Connections up to 2 miles away

Technical Specifications

Wireless
Frequency 5 GHz
Max data rate 300 Mbit/s
Number of chains: 2 per unit
Standards 802.11a/n
WPA2 Passphrase
256-bit AES-CCM Encryption
Dynamic Frequency selection
Layer 2 Features
Auto-negotiation for port speedand duplex
Redundant Protocols (alwaysenabled)
IEEE 802.1D STP
IEEE 802.1w RSTP
IEEE 802.1s MSTP
Ethernet
Primary Node: 10/100/1000BASE-TPassive PoE
Auxiliary Node: 10/100/1000BASE-T
Wireless
802.11a/n
LED Indicators
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3x full duplex and flowcontrol
IEEE 802.1D STP
IEEE 802.1s MSTP
IEEE 802.1w RSTP
IEEE 802.11w Management FrameProtection (MFP)
Power
Primary Node:
PoE in (Active PoE 802.3at/bt)
Max power consumption 17W
Auxiliary Node:
PoE in (Passive PoE)
PoE in input Voltage 6-30V
Max power consumption 11W
Primary Node Dimensions
270 x 565 x 76mm (W x H x D)
10.63” x 22.25” x 3”
Primary Node Weight (shipping)
6.2lbs (2.81kg)
Installation Type
Pole/Wall
Casing Material
UV Protected Polystyrene case
Auxiliary Node Dimensions
185 x 185 x 63.5mm (W x H x D)
7.28” x 7.28” x 2.5”
Auxiliary Node Weight(shipping)
2 units per box: 7.15lbs (3.25kg)
Auxiliary Node InstallationType
Pole/Wall
Auxiliary Node Casing Material
UV Protected Polystyrene case
Operating Temp.
-40 to 75°C (-40 to 167°F)
Storage Temp.
-45 to 85°C (-49 to 185°F)
Relative Humidity
5% to 95% (non-condensing)
Wind Survivability
200km/h
Regulatory
ISO
Manufactured in ISO-9001 facility
EMI
FCC Part 15B Class A
PCC Part 15C
Environmental Test Compliance
IEC 60068-2-6 Fc (VibrationResistance)
EN 61000-4-3 (Radiated RFI)
Warranty
3 years
What’s Included
1 Wireless Bridge Base unit
2 paired Wireless Bridge Clients
3 x 24VDC, 1.5A Power Supplies
3 x Passive PoE Injectors
3 x Mounting kits
