Electro-Voice EVOLVE Wall Mount Kit, NL4, Black

Electro-Voice EVOLVE Wall Mount Kit, NL4, Black​

The EVOLVE WMK (wall-mount kit) and EVOLVE TM-B (truss-mountbracket) enable users to mount the column speaker array of an EVOLVE 30M, 50 or50M system at a greater height or distance from its dedicated subwoofer thanthe provided distance pole allows.

The kits allow users more acoustic and aesthetic flexibilitywhen using an EVOLVE system. For example, the array can be wall-mounted ortruss-mounted at an increased height for a longer throw into the listeningarea; the subwoofer can be stowed away from the array for a more streamlinedstage setup or to save space.

Four WMK options are available, equipped with eitherPhoenix-style / Euroblock or NL4 connectors and finished in black or white. TheTM-B is equipped with NL4 connectors and comes in black.

Key Features

• Innovative mounting system for simple and secureinstallation of EVOLVE 30M, EVOLVE 50 and EVOLVE 50M systems, available inblack or white.
• Sturdy wall-mount bracket with 15° of downward tilt and 45°of left and right adjustment.
• Subwoofer and column adapters available with eitherPhoenix-style / Euroblock (internally secured PCB screw terminal blocks) or NL4connectors.
• Use correctly rated speaker cable for optimal performance:wire gauges 1.5 mm² – 2.5 mm² (AWG16 – AWG14).

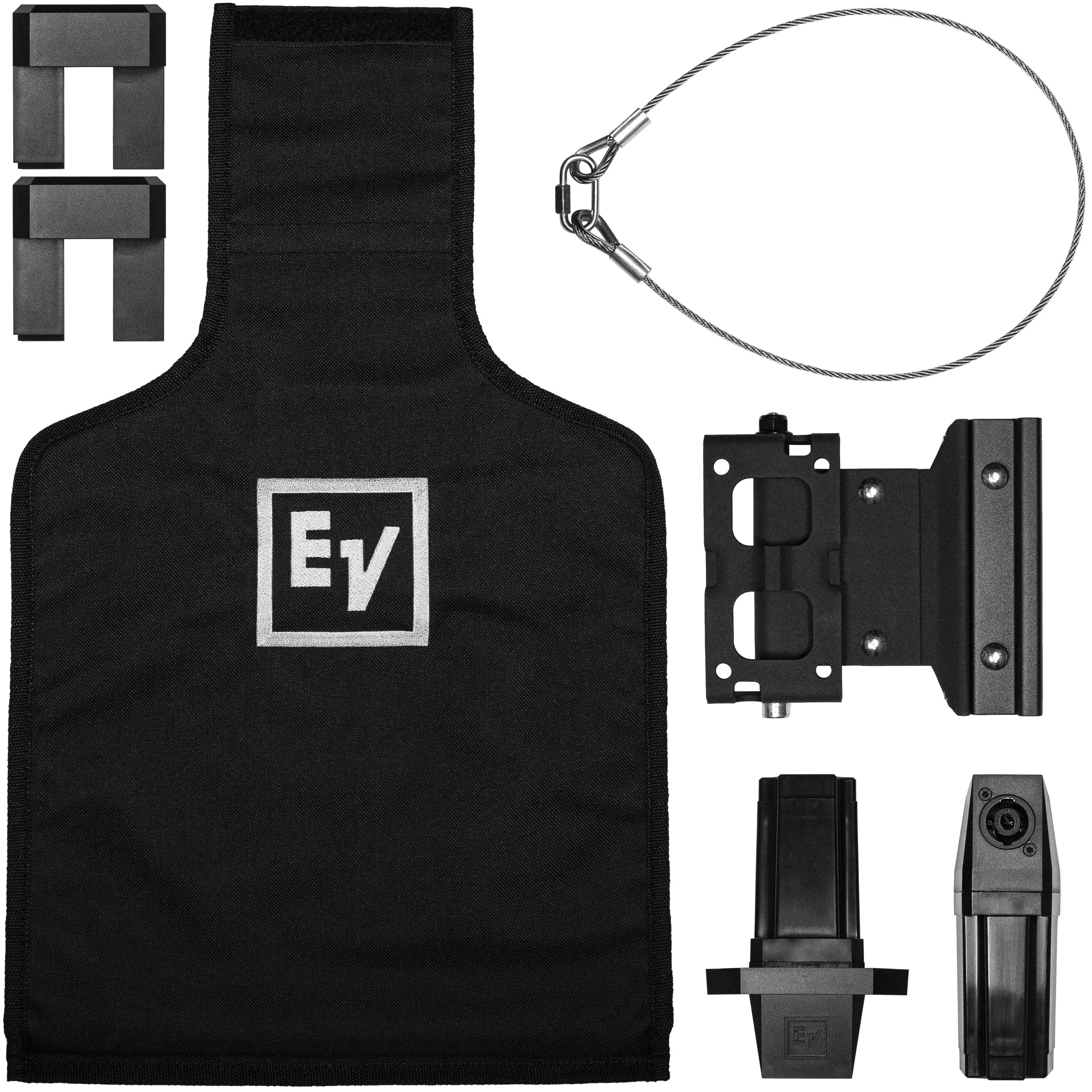

• Includes: wall-mount bracket, subwoofer amplifier and inputcover, column speaker adapter, subwoofer adapter, secondary auxiliary supportcable, installation manual, two rubber grommets (Phoenix kits only).

Technical Specifications

Electrical
Connector type Phoenix (removable screw connector)
Environmental
Usage
Indoor
Mechanical
Color
Black or white
Dimension (H x W x D) (mm)
80 mm x 400 mm x 400 mm
Dimension (H x W x D) (in)
3.1 in. x 15.75 in. x 15.75 in.
WLL (kg)
5 kg
WLL (lb)
11 lb
Weight (kg)
1.35 kg
Weight (lb)
3 lb
Shipping weight (kg)
1.80 kg
Shipping weight (lb)
4 lb
Electrical
Connector type
NL4
Environmental
Usage
Indoor
Mechanical
Color
Black or white
Dimension (H x W x D) (mm)
80 mm x 400 mm x 400 mm
Dimension (H x W x D) (in)
3.1 in. x 15.75 in. x 15.75 in.
WLL (kg)
5 kg
WLL (lb)
11 lb
Weight (kg)
1.35 kg
Weight (lb)
3 lb
Shipping weight (kg)
1.80 kg
Shipping weight (lb)
4 lb
