Electro-Voice EVOLVE Truss Mount Kit, Black

Electro-Voice EVOLVE Truss Mount Kit, Black

The EVOLVE WMK (wall-mount kit) and EVOLVE TM-B (truss-mountbracket) enable users to mount the column speaker array of an EVOLVE 30M, 50 or50M system at a greater height or distance from its dedicated subwoofer thanthe provided distance pole allows.

The kits allow users more acoustic and aesthetic flexibilitywhen using an EVOLVE system. For example, the array can be wall-mounted ortruss-mounted at an increased height for a longer throw into the listeningarea; the subwoofer can be stowed away from the array for a more streamlinedstage setup or to save space.

Four WMK options are available, equipped with eitherPhoenix-style / Euroblock or NL4 connectors and finished in black or white. TheTM-B is equipped with NL4 connectors and comes in black.

Key Features

• Innovative mounting system for simple and secureinstallation of EVOLVE 30M, EVOLVE 50 and EVOLVE 50M systems, available inblack only.
• Sturdy truss-mount bracket works with M10 threaded studsfound on common truss clamps (truss clamps not included).
• Subwoofer and column adapters equipped with NL4 connectors.
• Use correctly rated speaker cable for optimal performance:wire gauges 1.5 mm² – 2.5 mm² (AWG16 – AWG14).
• For use with truss clamps rated for WLL= 20 kg (44 lb) SF =5:1.

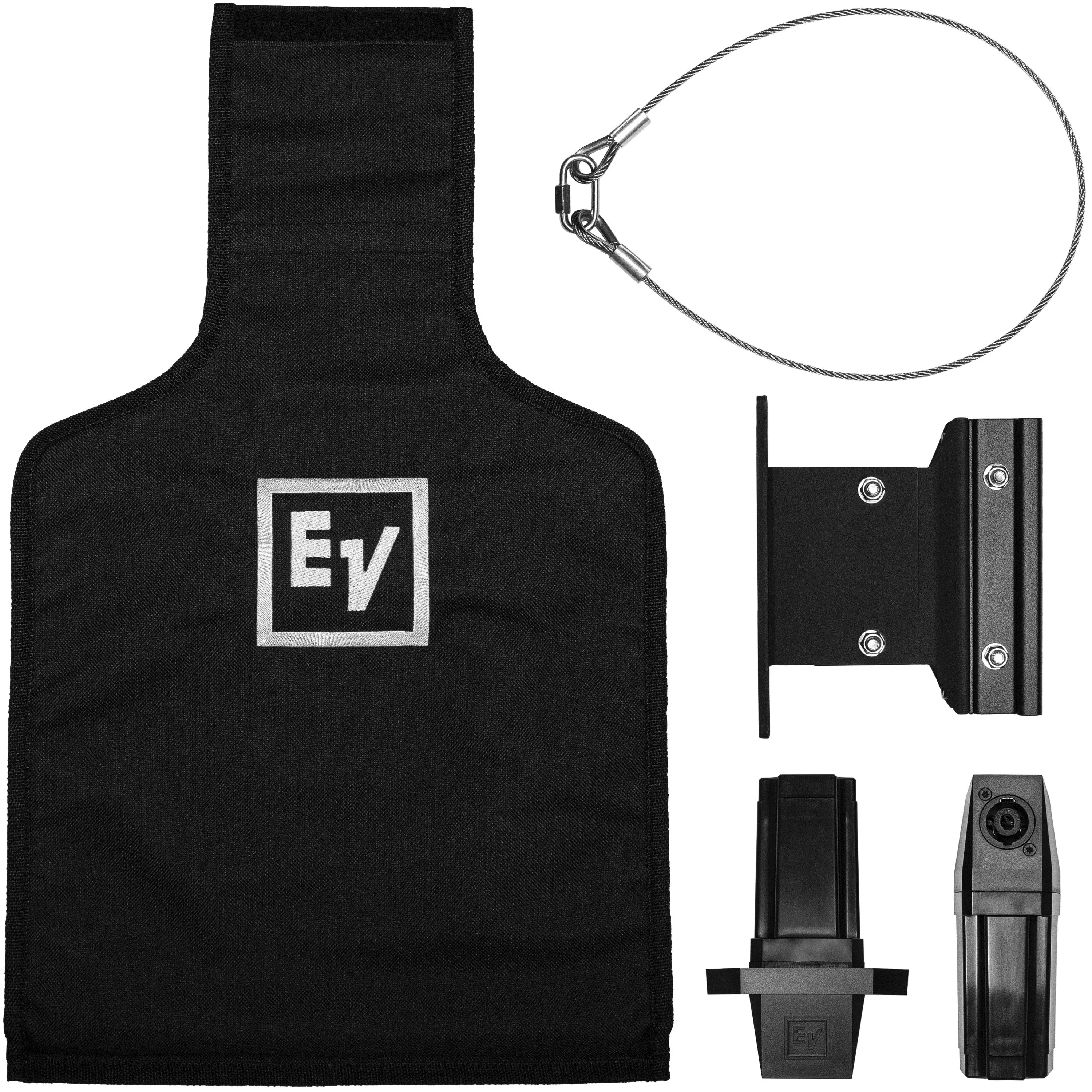

• Includes: truss mount, column speaker adapter, subwooferadapter, subwoofer amplifier and input cover, secondary auxiliary supportcable, installation manual.

Technical Specifications

Color
Black
Dimension (H x W x D) (mm)
80 mm x 400 mm x 400 mm
Dimension (H x W x D) (in)
3.1 in. x 15.75 in. x 15.75 in.
WLL (kg)
5 kg
WLL (lb)
11 lbs
Weight (kg)
1.35 kg
Weight (lb)
3 lb
Shipping weight (kg)
1.80 kg
Shipping weight (lb)
4 lb
