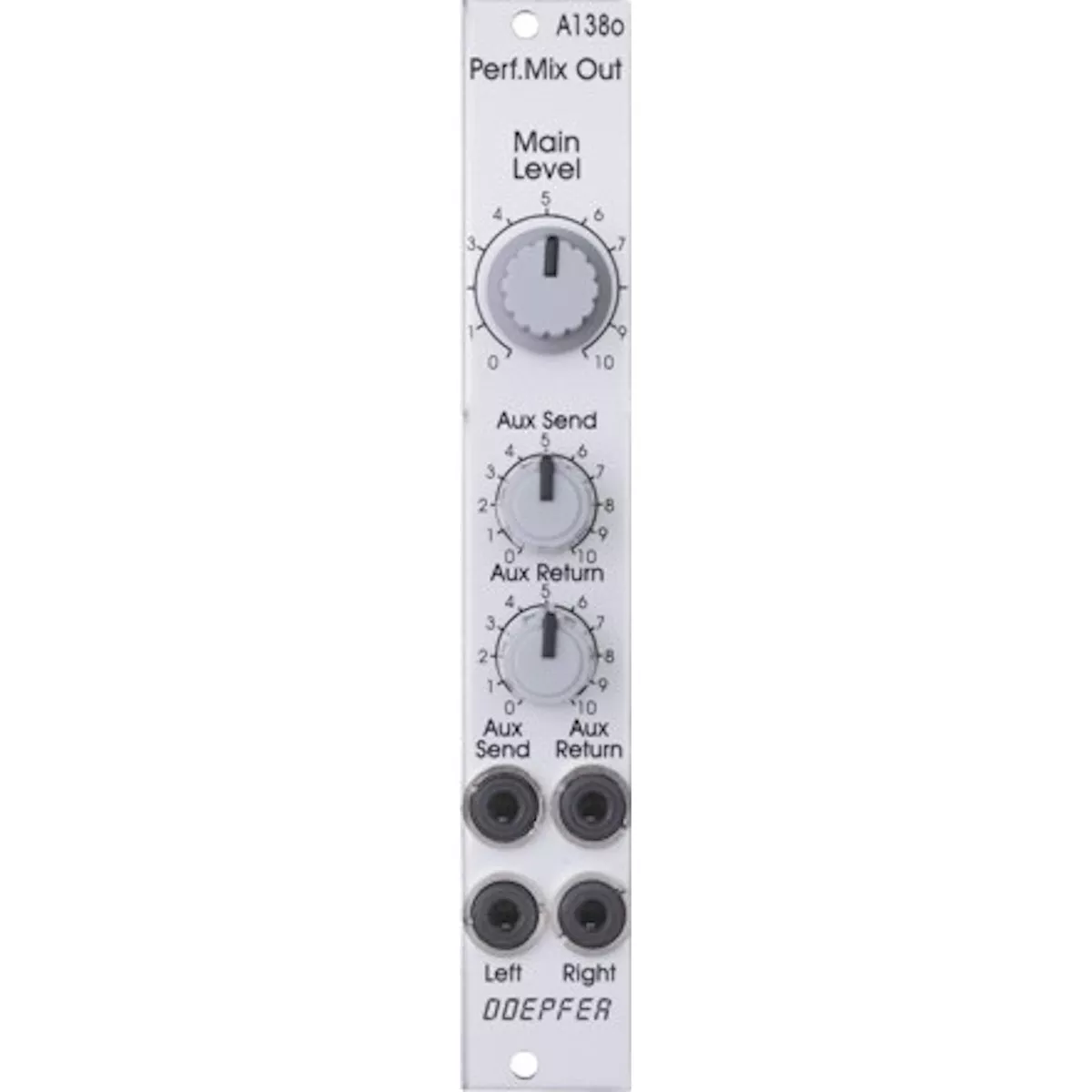

Doepfer A-138O

Modules A-138p/o are used to built a simple performance mixer (instead of an external stand-alone mixer). Module A-138p is the 4-fold input module, A-138o is the output module that can be combined with one or more A-138p. The A-138p/o modules can be combined also with the voltage controller performance mixer modules A-135-4.

A-138o features:

• level controls for Left, Right and Aux
• output sockets for Left, Right and Aux (3.5 mm mono sockets)
• A-138o requires at least one A-138p and/or A-135-4A (no stand-alone use)
• Application example for Aux Send and Aux Return: looping in another module for effects (e.g. DSP module A-187-1, BBD module A-188-1, Spring Reverb A-199)
• Application example for Aux Send only: pre-listening in combination with the headphone amplifier module A-139-2
