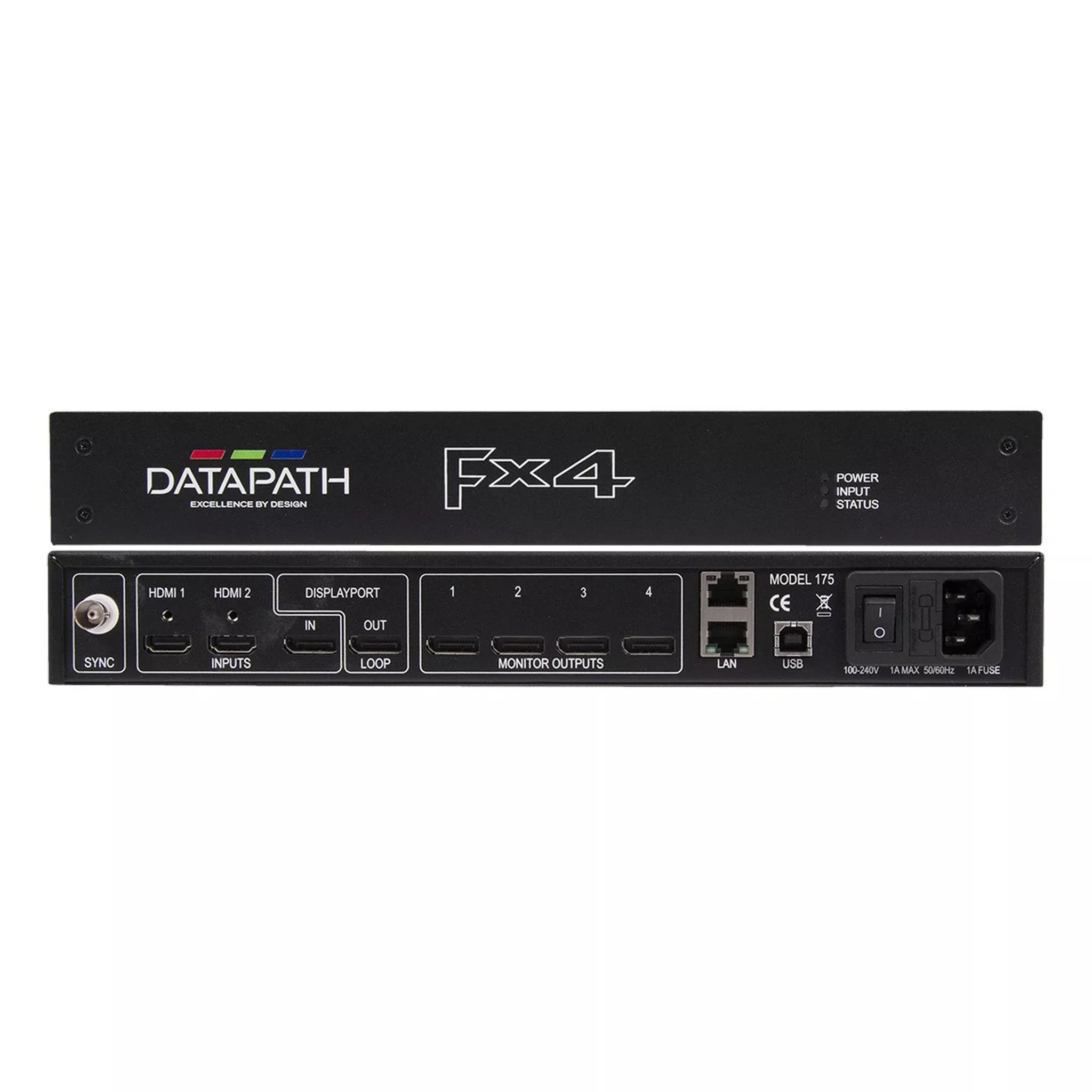

The Datapath Fx4/H is an amazing stand-alone displaycontroller that features multiple inputs, high-bandwidth loop-through as wellas 4 genlocked HDMI 1.4 outputs. The DATAPATH FX4/H is a high-performanceDisplay Wall Controller that is a part of Datapath’s next-generation video wallcontrollers.

Filling the gap in digital signage type requirements,Datapath designed this display wall controller to meet customers’ demands forfurther flexibility in creation and deployment for small, medium, to largescale signage solutions. This device contains a DisplayPort 1.2 main inputalongside two HDMI 1.4 inputs that will support up to 4K/60 resolutions or UHD2160p at 30 fps respectively, with an intuitive user interface that allowsusers to determine which input is used.

Inside, the Datapath FX4/H is a brilliantly designedhardware system that allows each output monitor to take its input from anyregion of the input image, as well all of the required cropping, scaling,rotation, and frame-rate conversions. These regions can then overlap to allowany output to replicate another or can be configured to support any creativesplice of the source material. This allows the support of many non-rectangularscreen arrangements with uneven gaps, including any mix of monitor orientations.For example, high quality downscaling allows the display of a 4k source on asingle output, while other outputs can crop and upscale to create an almostunlimited multi-screen canvas. As an added bonus, when using the display wallcontroller in a digital signage type application users can pre-load an imagefor immediate display situations when the media source or cables malfunctionand no signal is being received.

Another enhancement that has been built into the DatapathFX4/H is featured in its network connectivity abilities and Wall Designermulti-screen design tool. The device has dual Ethernet ports which allow usersto add the device to their networks. With that, only one Datapath FX4/H in thechain requires connection to the physical LAN as the Ethernet loop-through issupported on the second port, meaning multiple devices can be connected (daisychained). With an updated version of Wall Designer users can now add displaysfrom the ever-expanding database of monitors, visualize their content by addinginputs and adjusting display regions and now instantly program all DatapathFX4/H’s either via USB or the network ports, adding another layer of digitalsignage flexibility.

Any business, from restaurants, bars, to high-end studios,showrooms, or retail outlets, will instantly notice the amazing difference ofusing a quality made display wall controller for their digital signage typeapplications. The Datapath FX4/H, a powerhouse in display wall controllers, ata very cost-effective price, that supports industry-leading standards inhigh-quality 4K resolutions, and comes backed by a 3 Year warranty fromDatapath.

Technical Specifications

Inputs
Displayport 1.2, 2 x HDMI 1.4
Outputs
4 x HDMI 1.4
Supported Resolutions
Up to 4k 4096x2160p at 60 fps or UHD 2160p at 30 fps
Input Surface
8k x 8k maximum
Genlock Input
Analog black-burst on dedicated BNC connector. Any videoinput (HDMI1, HDMI2, DisplayPort)
HDCP support on all inputs and outputs
Rotates, crops, scales, mirrors and bezel correct
Control Interfaces
Dual 100BaseT Ethernet ports with inbuilt managed switch.USB 2.0 Type B connector (full speed operation)
Power
IEC switched and fused mains connector 100-240V, 50/60Hz /35W
Warranty
3 Years
Item Includes
1x Fx4 Multi Display Controller
1x Mains power cable
1x USB 2.0 cable Type A to Type B
1x Quick Start Guide
HDMI Locks
2x with the DisplayPort model
6x with the HDMI model
2x Rack mount attachments
6x Rack mount screws
1x Datapath CD containing Wall Designer Software Application
1x Fx4 User Guide

Installation / Use Cases

• Creating multi-display video walls using a single 4K input source
• Control room and monitoring environments requiring 4K 60Hz display distribution
• Digital signage installations needing flexible screen layout configurations
• Professional AV systems using HDCP-compliant display control for protected content
• Expanding display setups with loop-through capability for additional devices or controllers

Package Contents

• Datapath FX4/H 4K 60Hz Display Controller
