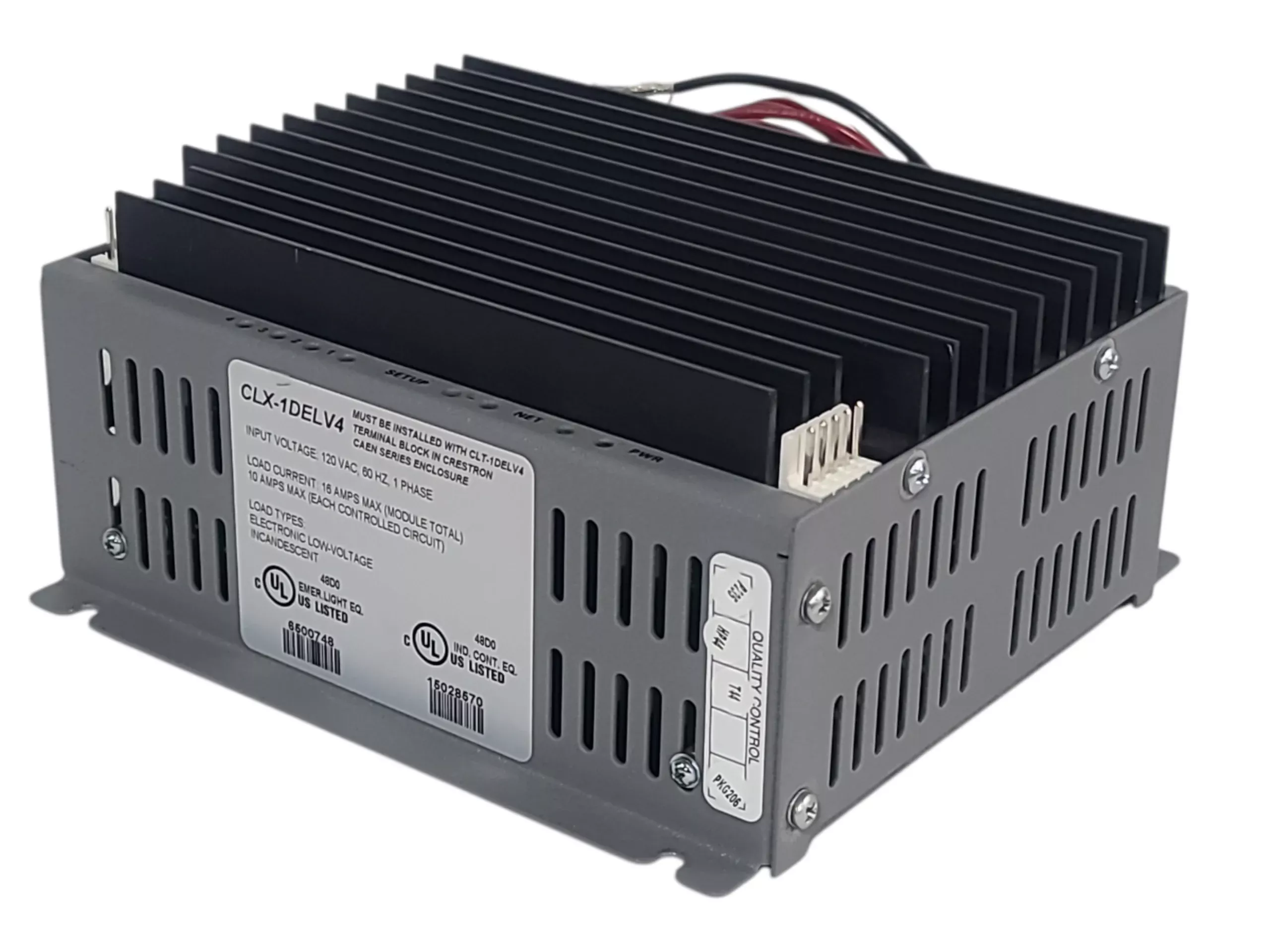

Crestron CLX-1DELV4 4-Channel Electronic Low-Voltage Dimmer Module, Single Feed

The Crestron CLX-1DELV4 is a professional 4-channel lighting control module designed as an integral component of a complete Crestron automation system for residential and commercial environments. This module provides four independent channels of dimming specifically engineered for electronic low-voltage and incandescent lighting loads. Each channel delivers substantial power for comprehensive lighting zones. A key feature for safety and maintenance is the inclusion of air-gap relays on every channel output, allowing individual circuits to be serviced without disabling the entire module.Engineered for superior performance and reliability, the CLX-1DELV4 utilizes oversized heat sinks for efficient cooling and split-bobbin transformers with ground-referenced electronics to deliver exceptional dimming performance. Crestron’s innovative zero-crossing detection technique effectively minimizes lamp flicker. Low-maintenance convection cooling ensures quiet, trouble-free operation. An override feature allows each channel to be set to a preset state, which can be activated globally via a simple contact closure if communications are ever disrupted, ensuring lights can always be controlled. The module occupies a single space within any CAEN automation enclosure. Read more

Features

• 4-electronic low-voltage dimming channels maximum.
• Single 120V feed powers all four channels.
• Each channel handles 10 amps or 1200 watts.
• Air-gap relays enable individual circuit servicing safely.
• Convection cooled design ensures silent operation.
• Occupies one slot in CAEN automation enclosure.
