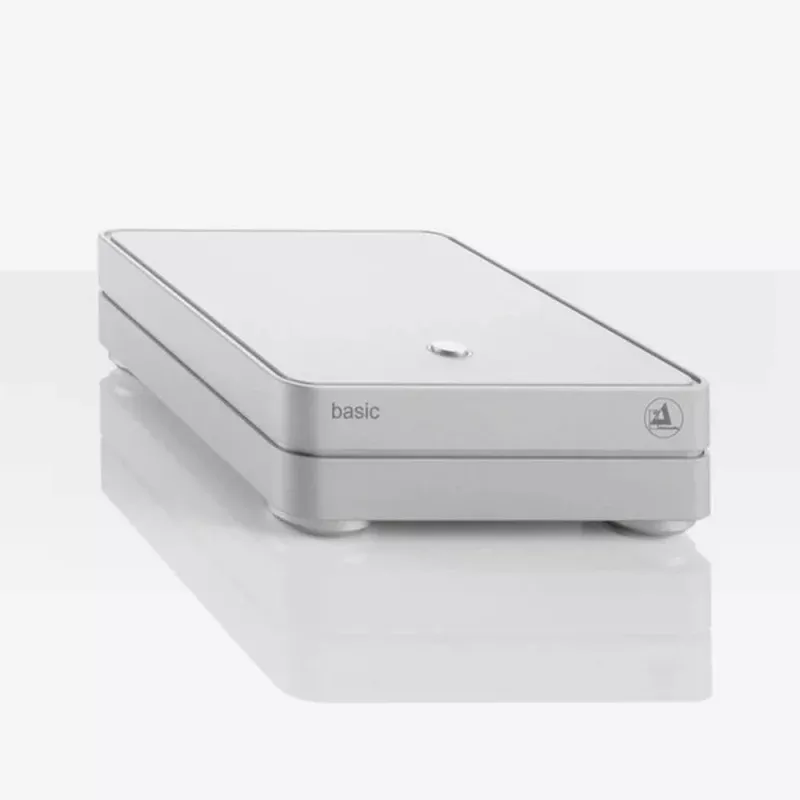

CLEARAUDIO BASIC V2 PHONO STAGE

On the outside, weve kept it very simple. Theres just one visible control, a single power switch on the upper surface that opens up a raft of possibilities. On the underside you can switch between moving coil and moving magnet mode. From there, you can easily enjoy the basic V2 with almost any high-end phono cartridge without making any further adjustments.Or, you can choose from a range of performance enhancing settings to fine-tune its parameters to your system and your hearts content. An optional subsonic filter attenuates any unwanted low frequency noise, while RIAA equalization accuracy is within 0.1 dB.All of which adds up to the basic V2 being the perfect all-rounder for both audiophiles and music lovers.

Specifications:

MODE: MM / MC switchable (at bottom)
Subsonic filter switchable (at bottom)
20Hz (18dB / Oct.; on each channel) AMPLIFICATION: + 46dB (MM mode)
+ 66dB (MC mode) INPUT LOAD: 47k / 270pF (MM mode)
500 / 270pF (MC mode) RIAA ACCURACY: 0.1dB THD: <0.002% (IEC A) SIGNAL TO NOISE RATIO: 72dB (MM mode)
67dB (MC mode) HEADROOM: + 20dB MAX. OUTPUT VOLTAGE: > 10V (at 1kHz) RIAA: 75s / 318s / 3180s, 2 passive filter CHANNEL SEPERATION: > 90dB at 1kHz OUTPUT IMPEDANCE: 10 INPUTS: unbalanced (RCA) OUTPUTS: unbalanced (RCA) POWER CONSUMPTION: Max. consumption: 3 watts (in operation)
Standby mode: <0.3 watts POWER SUPPLY: 18V DC (external wall mount power supply; 1.4m cable length) TOTAL WEIGHT: Approx. 1.2kg (preamp and power supply) DIMENSIONS (W/D/H): Approx. 4.655.71 (6.22 with RCA)1.65 inches DIMENSIONS (W/D/H): Approx. 118145 (158 with RCA)42mm
