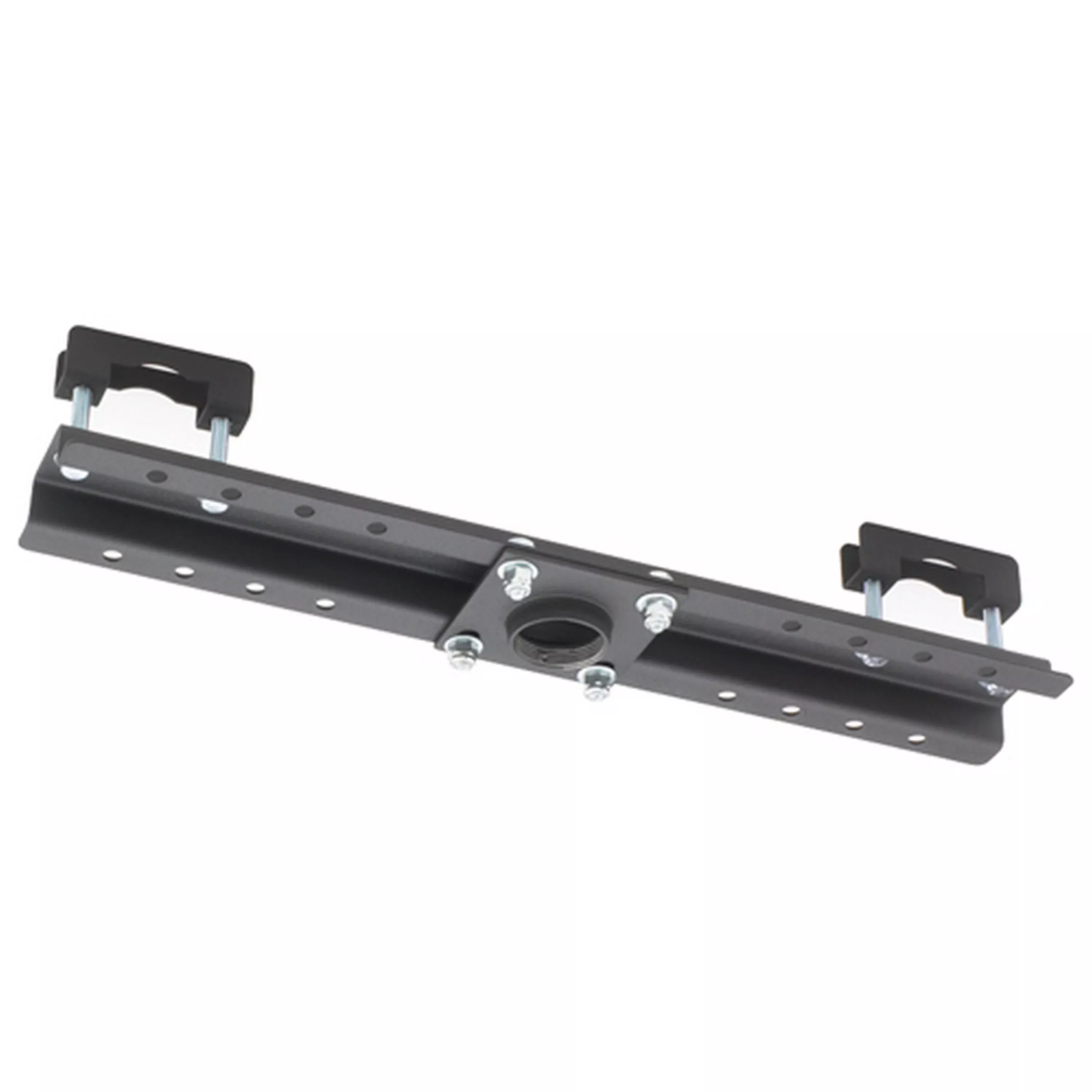

Chief CMA366 Architectural Spanning Adapter

Chief CMA366 Architectural Spanning Adapter

Spans truss systems for easy overhead installation ofequipment in buildings and exhibit booths.

Key Features

• Spans truss systems and provides lateral shift capability
• Compatible with 1.5″ NPT extension columns
• Allows cable routing through the column
• Span Distance: 5-18″ (127-457 mm)
• Clamp Range: up to 2″ (51 mm) OD or 1.9″ (48 mm)square tubing
• TAA Compliant

Technical Specifications

Certifications
TV Certified, UL Listed, TAA Compliant
Color
Black
Overall Dimensions (Hx W x D)
1.8″ x 4.0″ x 21.8″ (45 x 102 x 552 mm)
Shipping Weight
7 lbs (3.18 kg)
Weight Capacity
250 lbs (113.4 kg)
