Caveman Modules Totem – Multimode VCF

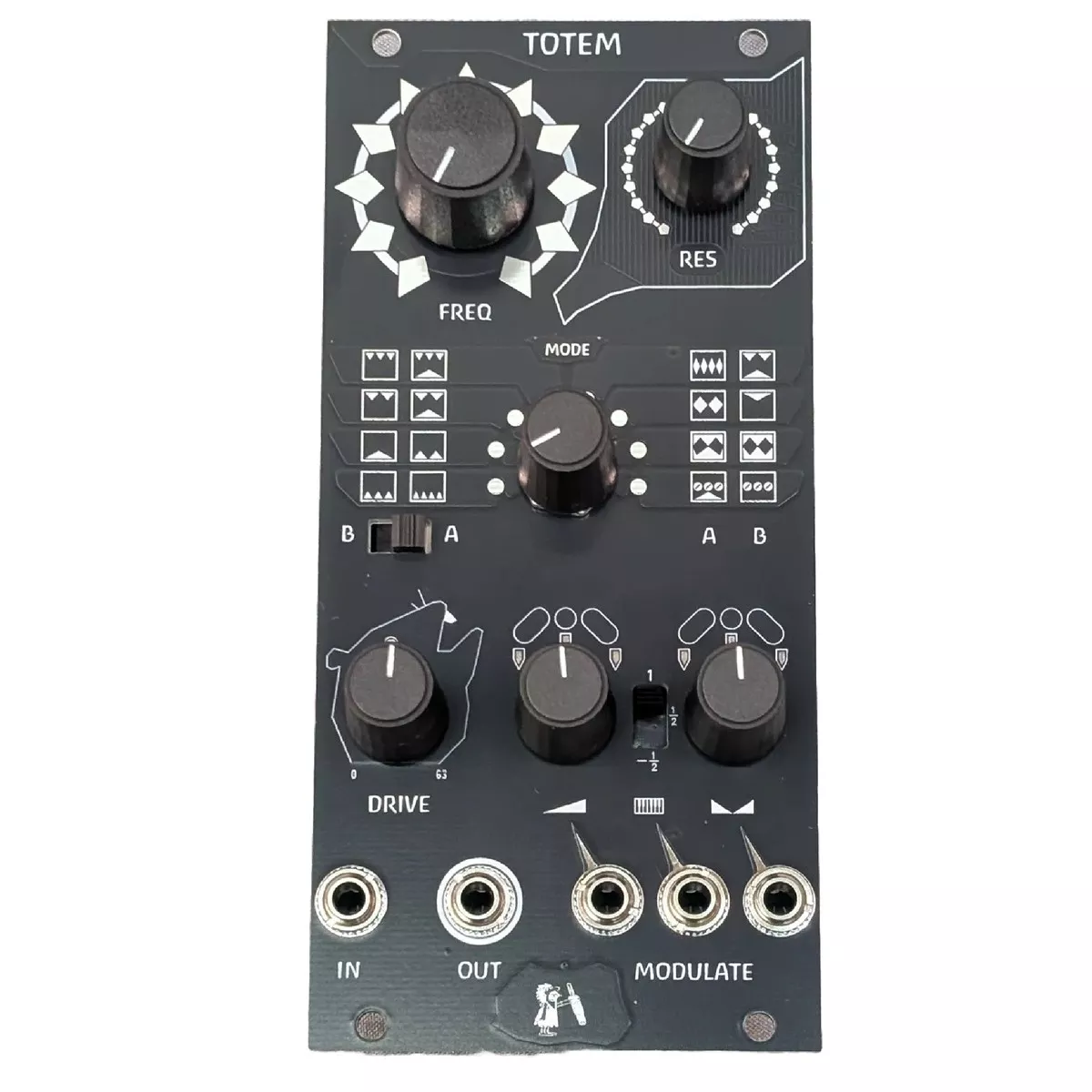

Caveman Modules Totem Pole Mixing Multimode VCF

The Totem Pole VCF is a versatile multimode voltage-controlled filter built around the classic 3109 OTA chip, featured in legendary synths like the Roland SH-101, MC-202, and Jupiter-8. With 16 filter modes and expressive modulation options, it delivers rich analog tones for any modular setup.

Key Features

• 16 filter modes: LPF, HPF, BPF, Notch, and Allpass combinations across two mode banks.

• Drive control: Push the filter into overdrive for dynamic tonal shaping.

• Flexible CV inputs: Includes attenuator, attenuverter, and V/OCT control with half and negative half scaling.

• Compact Euro format: 12HP width, 25mm depth, fits any Eurorack system.

• Low power draw: +12V: 20mA, -12V: 10mA.

Specifications

• Width: 12HP

• Depth: 25mm

• Current Draw: +12V: 20mA / -12V: 10mA

Filter Modes
