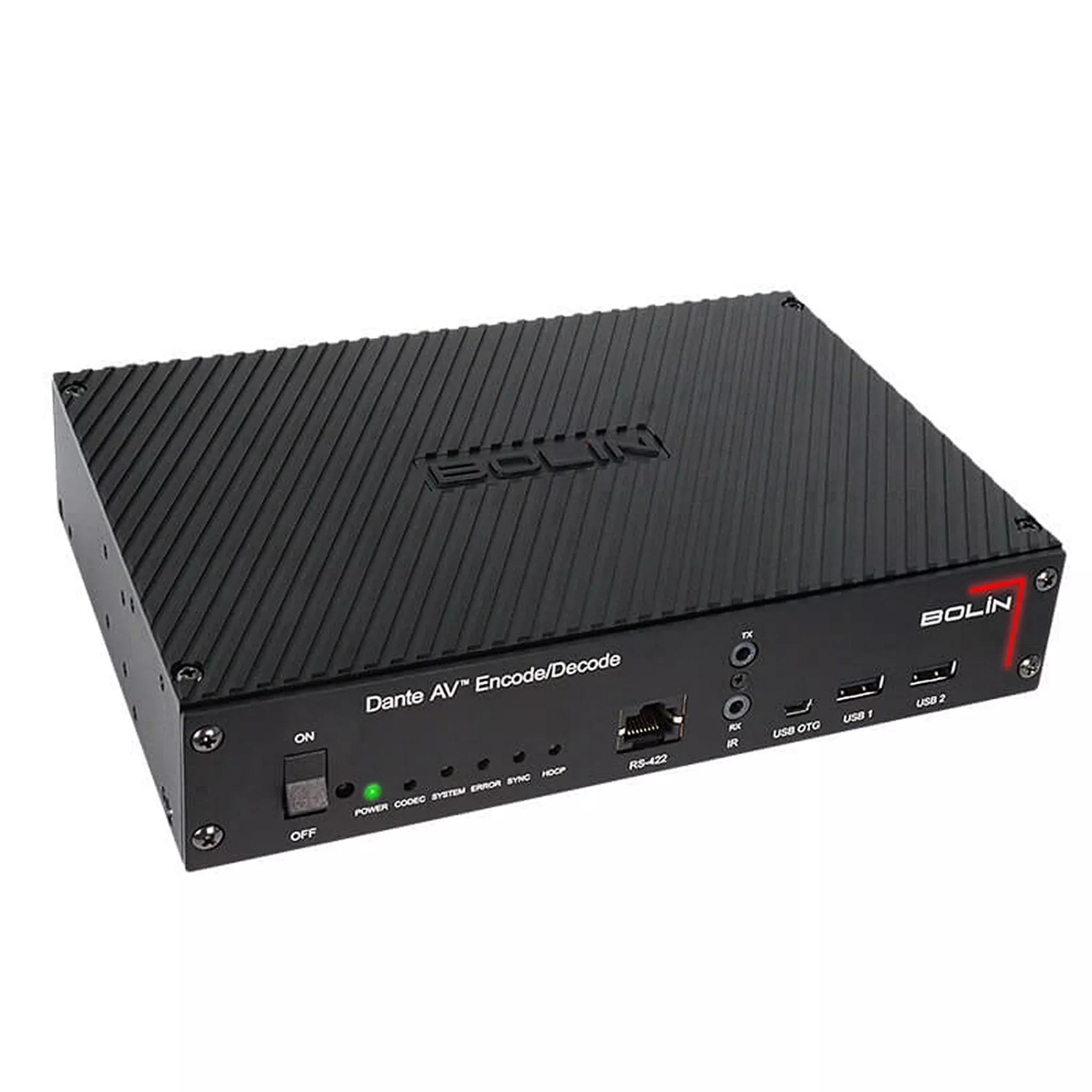

Bolin Technology D20S 12G-SDI DanteAV Encoder/Decoder

Bolin Technology D20S 12G-SDI DanteAV Encoder/Decoder

The Bolin D20S(12G-SDI) decoder is part of Bolin DanteAVcamera system. Over standard Gigabit network, a single-channel networked AVdecoder outputs baseband video HDMI 2.0 and/or 12G-SDI, which not only workswith Bolin DanteAV PTZ camera but also works with standard DanteAV video devicewithin Dante eco system.

It transports up to UHD/4K60 4:4:4 video output with ultra-lowlatency and lossless quality. It’supports HDCP, plus IP PTZ camera control,embedded audio and control pass-through.

As part of Dante Audio over IP eco family, using standardGigabit Ethernet network switches and CAT5e UTP wiring, D Series decoderdelivers a high-performance virtual video matrix routing solution forpresentation of multimedia, and live camera images, Dante 4k video contentapplication such as demanding conference room and classroom applications.

Unicast and Multicast for Video Display Routing
Paired with Dante AV decoder, it receives the signal from aDanteAV PTZ camera or an encoder and feeds it to a display device via the HDMIand/or 12G-SDI output. Using familiar Dante Controller software, the decodercan quickly and easily switch between multiple DanteAV endpoints includingcameras or encoders on the network, with no need for breakouts or matrix switchesto unicast or multicast display the video on any number of screens and videorouter system to use.

Implementation of HDCP 2.2 Encryption
Adheres to the latest HDCP 2.2 (HDCP 2.3 for network)specification for High-bandwidth Digital Content Protection. Allows protectedcontent streams to pass between authenticated devices.

Dante Controller Supported
Full setup and control and monitoring of the device isenabled through Dante Controller that delivers standard Dante features such asautomatic device discovery and system configuration, making network setup asimple plug and play experience.

Always Up to Date
Firmware updates, upgrade via Bolin Dante AV software IPinterface to keep the decoder features and performance up to date.

Audio Formats, Dante Audio over IP
The D20 Series Dante AV Transceiver supports Dantecompatible networked audio streams from encoders and audio interfaces. Thereceived Dante audio streaming can be combined with the video and then outputvia the HDMI output.

Two Ethernet Ports and POE
The D20 Series Dante AV Transceiver includes two RJ-451000BASE-T ports can be used to transport video over a Gigabit Ethernetnetwork. Ports 1 for Dante network primary connection and Port 2 can be used todaisy-chain other endpoints. Port 1 is also capable of receiving power viaPOE++.

Key Features

• Can be configured to operate as an encoder or a decoder viafirmware upgrade
• Ultra-low latency real-time video performance over IPnetwork
• 4K60 4:4:4 video over standard Gigabit Ethernet
• Use as a decoder – provides HDMI 2.0 and/or 12G-SDI output
• Tunable audio delay to facilitate lip-sync control
• Supports unicast and multicast for 8 audio flow and 1 videoflow
• Full support of Dante audio and video protocols
• Supported by Dante Controller
• Fully time-aligned and separately routable audio and videostreams
• Visually perfect video using network efficient JPEG2000codec
• Easy control of PTZ camera via Visca Over IP and serial/IRover IP
• Fully validated implementation of HDCP 2.2 (HDCP 2.3network) encryption
• EDID support
• Works with installed 1Gbps network – no need to replacenetwork infrastructure.
• Compact, surface/rack-mountable design

Technical Specifications

Codec
Device
Encoder/Decoder
Video Codec
JPEG2000
Video Resolution
Up to 4096x2160p60
Bit Rates
200 to 800 Mbps
Copy Protection HDCP
Yes
ULL-Ultra Low Latency
Yes
Video
Format/Eco-System
Dante Video over IP
Encoder Input
HDMI 2.0
Encoder Monitor Output
HDMI 2.0
Decoder Output
HDMI 2.0+12G-SDI
HDMI Resolution
4096x2160p, 3840x2160p, 1920x1080p, 1920×1200, 1600×1200,1280x720p, 1280×1024, 1024×768, 800×600, 720x576p, 720x480p, 640×480
HDMI Frame Rate
23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HDMI Color Space
RGB, YCbCr
HDMI Bit Width
8-bit, 10-bit, 12-bit
HDMI Color Sampling
4:4:4, 4:2:2, 4:2:0
HDMI EDID
Yes
SDI
12G-SDI
SDI Resolution
4096x2160p, 3840x2160p, 1920x1080p, 1920×1200, 1600×1200,1280x720p, 1280×1024, 1024×768, 800×600, 720x576p, 720x480p, 640×480
SDI Frame Rate
23.98, 24, 25, 29.97, 30, 50, 59.94, 60
SDI Color Space
YCbCr
SDI Bit Width
8-bit, 10-bit, 12-bit
SDI Color Sampling
4:2:2, 4:2:0
Video Standard
SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE2081, SMPTE 2082 With SMPTE352 SDI Metadata Supported
Audio
Audio Format
Dante Audio over IP
Encoder Input
Up to 8 channels to Dante
Decoder Output
2 channels from Dante
Bit Depth
24, 16 and 32 bits
HDMI Audio Embedded
Yes
SDI Audio Embedded
Yes
Network
Ethernet
Standard 1Gbps Ethernet
Ethernet Port
2
Video Flow
Yes
Audio Flow
15
Control
Serial Control
RS422
PTZ Camera Control
Yes
Control Protocol
VISCA, VISCA Over IP
USB
2
Mouse & Keyboard
Yes
IR TX/RX
Yes
PTZ IR Receiver
Yes
General
Firmware Upgrade Via
IP
Power Input
12VDC, POE++(IEEE802.3bt, Type 3, class 6 compliant)
Bolin POE Injector Recommended
Yes
Mounting Orientation
Ceiling, Wall, Base, Rack (Single/Dual), Surface mount
Operating Temperature
-10 to +40 (Degrees C)
Body Color
Black
Item Includes
1x D20S Transceiver
1x B-BM10 (Base Mount)
1x B-SM10 (Surface Mount)
