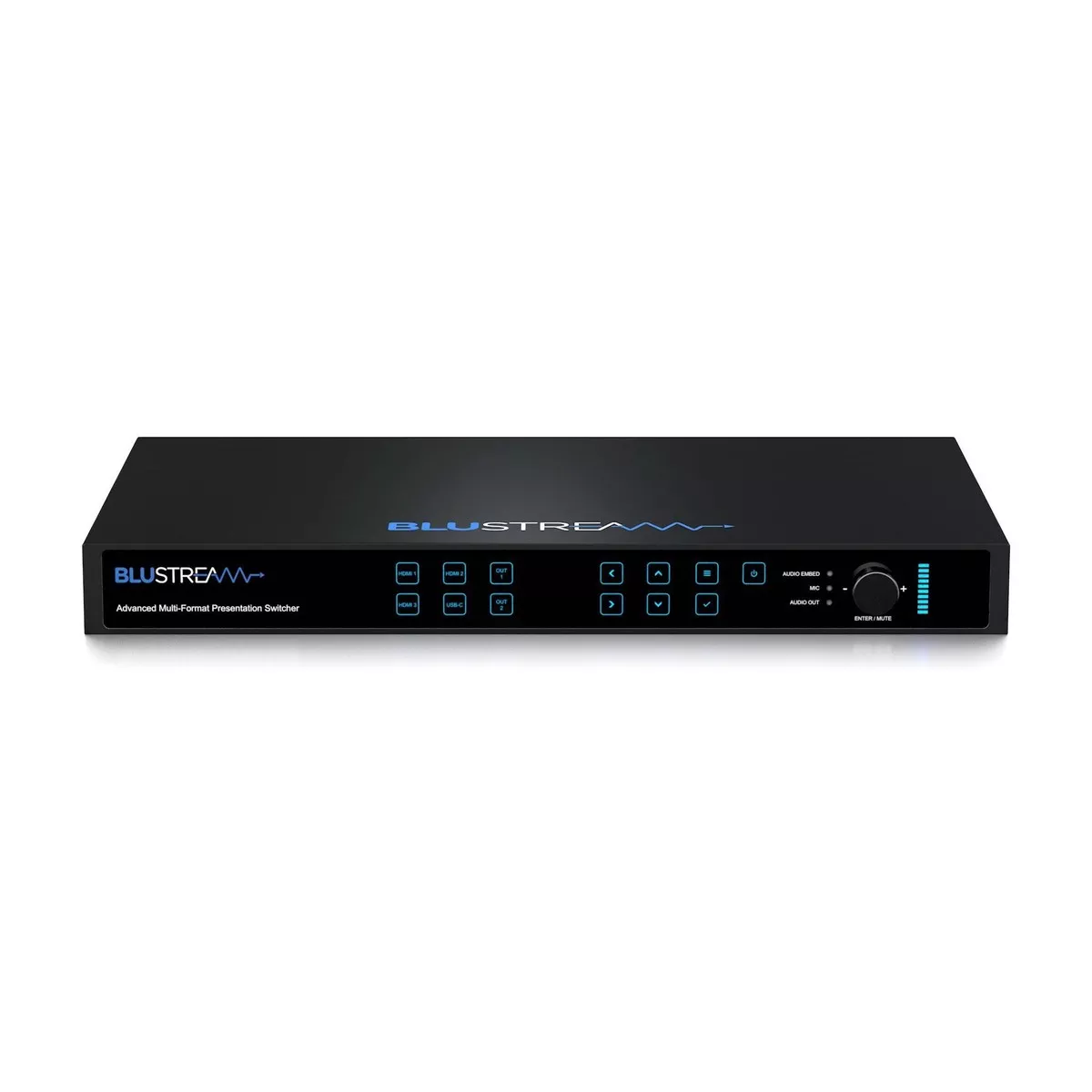

Blustream AMF42AU Advanced Presentation Switch Multi Format

Our AMF42AU is an advanced 4K 4×2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 multi-format presentation switcher featuring 3 x HDMI 2.0 and 1 x USB-C input to 2 x HDMI 2.0 / 1x HDBaseT output.

The AMF42AU provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with audio mixing and 48V phantom power, PoC to power a Blustream compatible HDBaseT receiver.

The AMF42AU also features Web GUI for control and configuration, source and display control via CEC, RS-232 and IR, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP.

The AMF42AU is an ideal product for your boardroom, classroom or huddle-space application.

Features

Dual HDMI / HDBaseT on output 2

Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*

Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*

Independent video scaling on outputs

Supports resolutions up to 4K UHD 60Hz 4:4:4 and 2ch PCM audio only

Seamless source switching with manual or auto source selection

Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability

Audio breakout to analog L/R audio and Toslink (S/PDIF) digital outputs concurrently

ARC breakout available via S/PDIF when using RX70CS receiver

Analog audio inputs and output support both balanced and unbalanced audio

Features MIC mixer over source audio with independent level adjustment

MIC input supports line level or 48V Phantom power

Configurable source and display control via CEC, RS-232 and IR

Web interface module for control and configuration of matrix

3rd party drivers available for major control brands

HDCP 2.2 compliant with advanced EDID management
