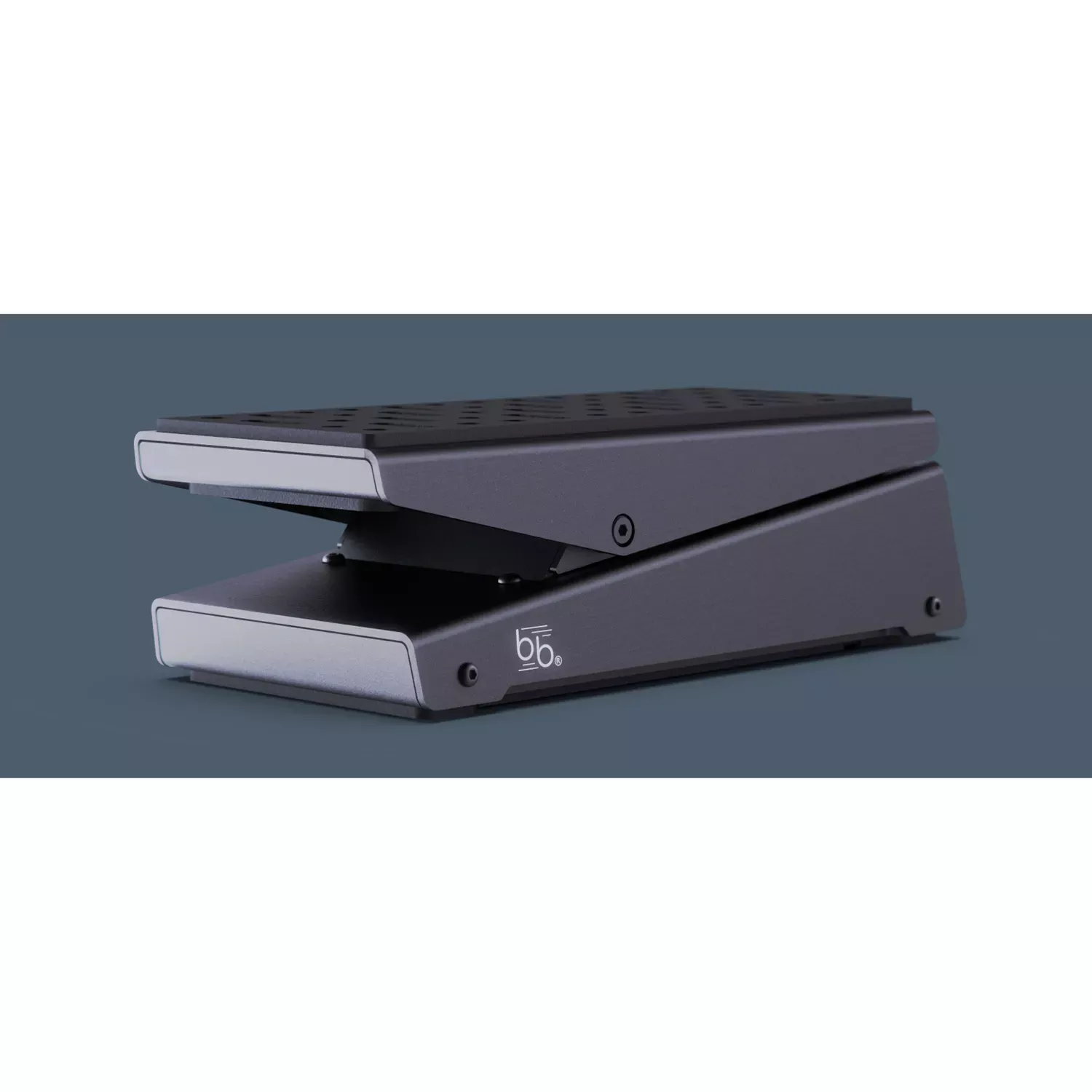

Beat Bars EX3 Programmable MIDI Expression Pedal

Make a real difference by streamlining your creative process.

Now you can make your ideas come to life even faster.
Unparalleled flexibility when using MIDI and working with a DAW.
EX3 converts your foot’s movement into a stream of MIDI messages, making it an essential tool for controlling thousands of VST plug-ins.

The pedal provides extensive configuration options for controlling parameters in DAWs and virtual instruments.

As a keyboard player, you can modulate any sound parameter. For guitarists, it makes controlling effects such as a wah-wah or pitchshifter much more comfortable.
If you are a DJ, it can replace a knob or slider which you will be able to control with your foot, thus freeing your hands.

A great tool for setting the tempo and syncing.

EX3 provides instant plug-and-play connectivity.
Power it from your computer via the USB port or via a standard USB adapter*. No batteries are required.

Get the most out of your equipment by not having to use your hands.
EX3 is more versatile than most expression pedals.

In addition, it has a beautiful, durable, aluminium design.

Functions (configurable by the software):

• MIDI Channel
• MIDI Message Type
  • Control Change (CC)
  • Pitch Bend Change
  • Polyphonic Key Pressure (Aftertouch)
  • Channel Pressure (Aftertouch)
  • Timing Clock (Tempo)
• MIDI Output Range
• MIDI parameter value (depends on MIDI Message type, e.g. CC )
• Reversed Mode
• Pedal Calibration
• Factory Reset

Requirements:

• Desktop or laptop computer with Intel processor and 1GB RAM (2GB recommended)
• macOS 10.11 (El Capitan) or later
• Windows 8 (64-bit) or later
• Linux with Java SE Runtime Environment 10 or later

• Output
• MIDI USB-B socket
• MIDI DIN (5V)
• Included Accessories
• 3m USB standard A/B-type male cable, for connection to any USB port on your computer
• Allen key (for adjusting the resistance of the pedal)
• Power Source: USB bus
• Power Consumption: ~40mA @ 5V
• Data Transmission
• Class-compliant MIDI over USB
• MIDI DIN
• Weight: 628 g (22.2 oz.)
• Dimensions: 210 × 98 × 63 mm (8.3″ × 3.9″ × 2.5″)
• Material: aluminium design
• Colour: black
• The adapter is compatible with Windows PC, Linux and Mac computers as well as with iPad Pro (3rd generation) tablets and musical instruments with 5-pin DIN sockets

*power supply is not included
