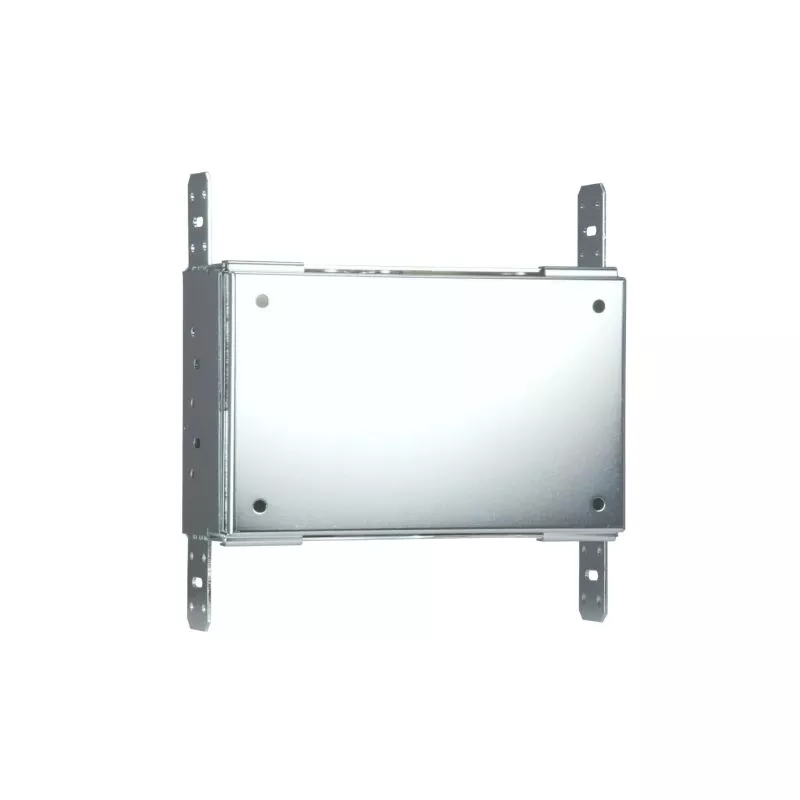

AMX CB-MXSA-07 Rough-in Box for 7″ Touch Panels

AMX CB-MXSA-07 Rough-in Box for 7″ Touch Panels

The AMX CB-MXSA-07 is a professional-grade rough-in box engineered for flush-mount installation of control panels in new construction and retrofit applications. This enclosure provides a clean, integrated mounting solution that sits seamlessly within wall cavities, delivering the polished appearance expected in modern AV installations.

Installation & Compatibility

Designed for direct stud mounting during rough-in phases, this box accommodates AMX Modero X and S Series 7″ wall mount touch panels and the AMX Acendo Book scheduling panel. The included wall box, cover, and mounting screws provide everything needed for standard drywall integration, with a minimum clearance requirement of 0.50 inches between the box and outer wall surface to ensure proper panel seating.

Dimensions & Physical Specifications

The enclosure measures 2.38″ × 6.81″ × 4.32″ (6.05 cm × 17.30 cm × 10.97 cm) with cover installed, fitting cleanly into standard wall framing without requiring oversized cavities. This compact footprint maintains clean sightlines while housing the necessary wiring and infrastructure for professional control panel deployment.

Key Features

• Includes wall box, cover plate, and mounting hardware
• Compatible with AMX Modero X Series 7″ touch panels
• Compatible with AMX Modero S Series 7″ touch panels
• Compatible with AMX Acendo Book scheduling panel
• Designed for direct mounting to wall studs during rough-in phase
• Minimum 0.50″ clearance requirement between box and outer wall surface
• Overall dimensions: 2.38″ W × 6.81″ H × 4.32″ D with cover
• Professional-grade construction for commercial AV installations

The CB-MXSA-07 delivers reliable infrastructure for seamless touch panel integration in architectural control systems, backed by AMX’s reputation for dependable AV infrastructure components.
